250 Ton Rutil Injection molding Press RSO 1200/250 ; S/N 130/322

250 Ton Rutil Injection molding Press RSO 1200/250 ; S/N 130/322

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

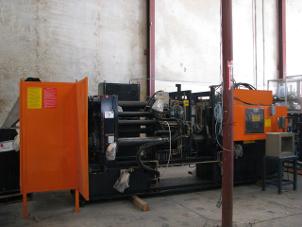

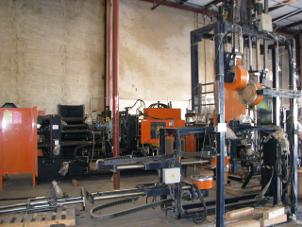

(1) Used 250 Ton Rutil RSO 1200/250 Horizontal Rubber Injection Molding Press; S/N 130/322; Mfg. 2005; Mint Condition!!


Specifications:

Bed Area........................................................24" F-B x 25 1/2" T-B

Ram Area.......................................................22 5/8" F-B x 25 1/4" T-B

Distance Between Posts.................................18" F-B x 20" T-B (nominal)

Post Diameter.................................................6"


Injection Unit:

Injection Capacity / Shot Size.....................1,100 cc (67.126 in 3 )

Injection Pressure......................................1700 kg/cm 2 (24,179 psi)

Screw Diameter..........................................45 mm (1.77")

Piston Diameter..........................................80 mm (3.15")

Injection Stroke..........................................220 mm (8.66")

Hydraulic Motor..........................................450 cc (27.46 in 3 )

Max. Working Pressure..............................160 kg/cm 2 (2,275 psi)


Clamping Unit:

Heating Platens..........................................610 x 640 mm (24" x 25.2")

Clamping Force..........................................250 tons (226.8 metric tons)

Mold Regulation.........................................195 mm (7.68")

Maximum Mold...........................................465 mm (18.3")

Minimum Mold............................................270 mm (10.63")

Movable Platen Stroke...............................750 mm (29.5")

Clamping Cylinder Hydraulic Pressure.......260 kg/cm 2 (3,698 psi)


Power requirements:

Electric Motor.............................................22 kW (29.5 HP)

Platens Heating..........................................16 kW

Thermoregulator Units................................21 kW


Hydraulic Tank Capacity..................................200 L (52.8 gal.)


Electrical Characteristics.................................480 VAC / 60 Cycle

Functioning Temperature...........................18 °C - 45 °C (64.4 °F - 113 °F)

Storage Temperature.................................5 °C - 55 °C (41 °F - 131 °F)

Humidity......................................................30% - 90%

Altitude........................................................Up to 1,000 m (3,280 ft.)


Equipped With:

Automatic Brushing

(2) Station Injection unit Operator interface

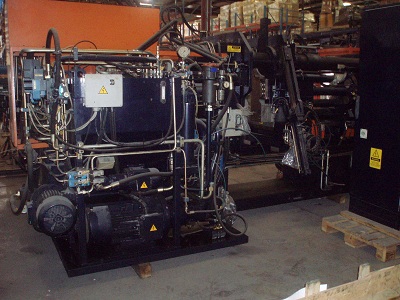

Hydraulic unit

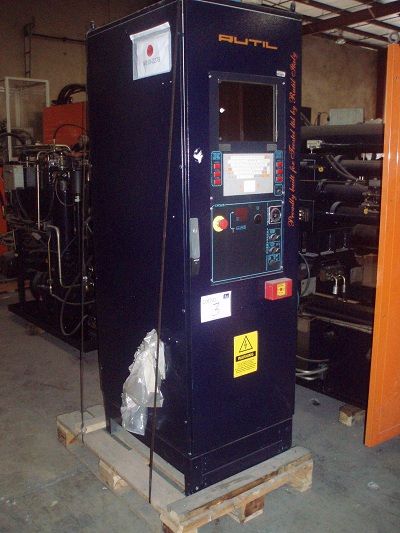

Control Hardware

(2) Tanks

Manuals


Dimensions.......................................................196.06" L x 102.36" W x 141.73" H (4.98m L x 2.6m W x 3.6m H) Weight...............................................................29,763 lbs. (13,500 kg) F.O.B................................................................Casa Grande, AZ

Specifications

ManufacturerRutil
Year2005
ConditionUsed
Serial Number130/322
Stock Number3225
