7.6 HP BALDOR Brushless Servo AC Motor

7.6 HP BALDOR Brushless Servo AC Motor

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

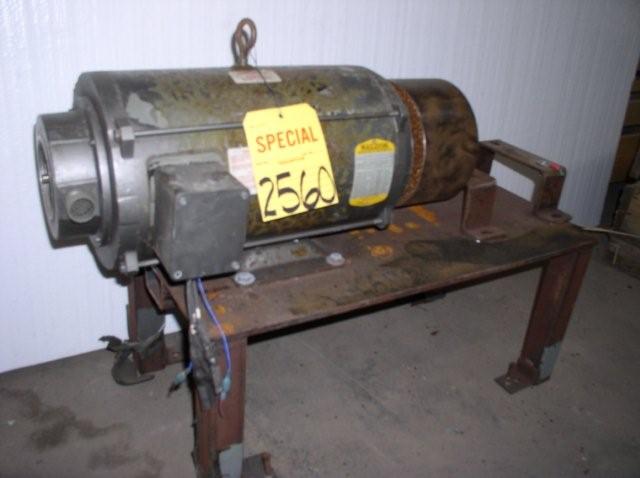

(1) Used 7.6 HP BALDOR Brushless Servo AC Motor; Spec # 37P907X72261; Mfg.# 52/96 Specifications: Maximum Power........................7.6 HP (5.67 kW) Rated Speed..........................2,000 RPM Maximum Speed........................5,000 RPM Rated Bus Voltage....................650 Volts Peak Current.........................5 A RMS Current Continual Stall..............16 A RMS Torque Continual Stall...............38.87 nm Torque Peak Stall....................120 nm Torque Constant......................3.34 NM/A Insullation Class....................F Output Shaft Diameter................1 3/8" Base Size............................6" F-B x 10" L-R Equipped With: Aluminum End Housings Overall Dimensions...................13" L-R x 22" F-B x 12" High (est.) Weight...............................120 lbs. (est.) F.O.B................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number2560
