65” WEAN-UNITED Embossing Roll Stand

65” WEAN-UNITED Embossing Roll Stand

Casa Grande, AZ

orCall 1-520-836-9727

Description

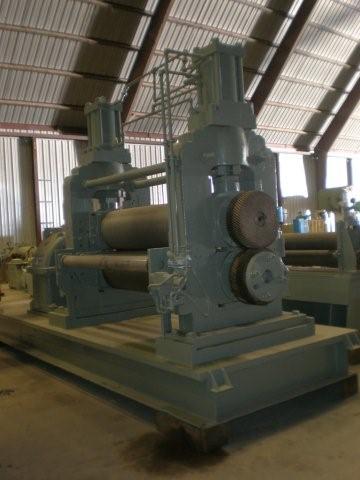

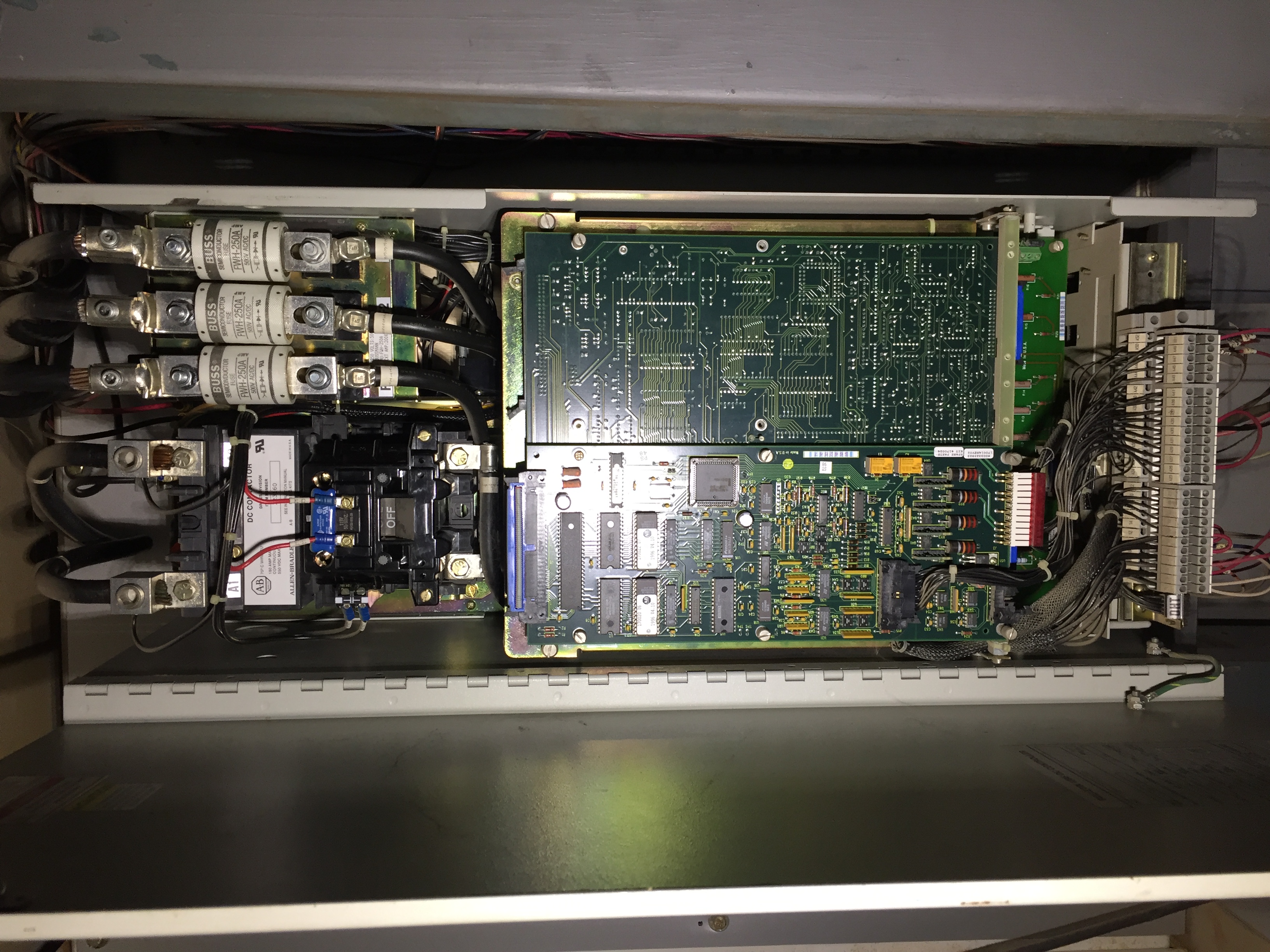

(1) Used 65" WEAN-UNITED Embossing Roll Stand Specifications: Roll Face..............................................................65" Distance Between Housings.................................67" Roll Diameter.......................................................18" Shaft Diameter.....................................................8" (est.) Pass Line Height..................................................48" Hydraulic Piston Rod Diameter.............................4" Hydraulic System.................................................. Roll Speed............................................................FPM Main Drive Motor..................................................50 HP @ 1,150 RPM (with 25.8:1 gear reducer) Electrical Characteristics......................................230 VAC / 3 Phase/ 60 Cycles Equipped With: Complete Electrical Controls Overall Dimensions...............................................212" L-R x 76" F-B x 130" High Weight..................................................................38,000 lbs (est.) F.O.B....................................................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number2606
