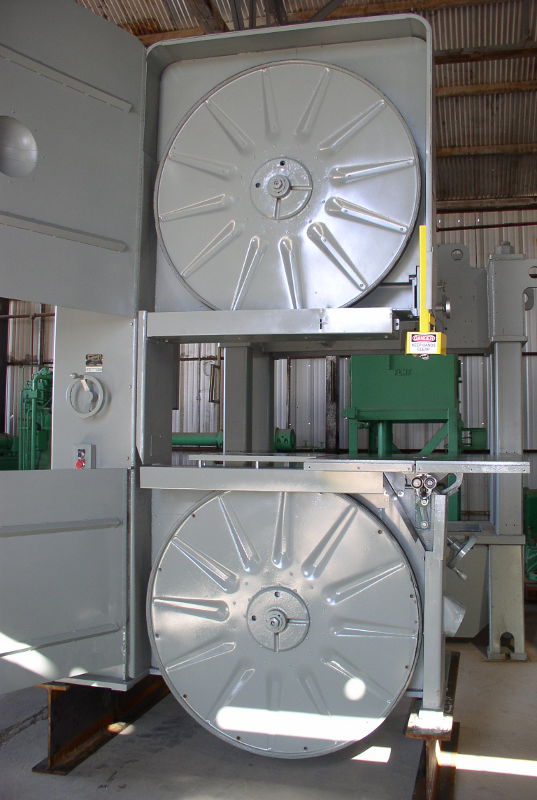

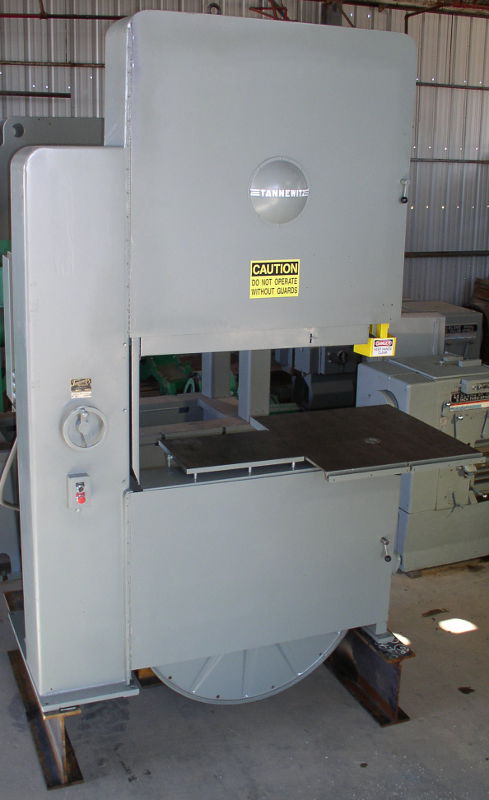

52" Tannewitz Model S1NE Vertical Band Saw

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 52" Tannewitz Model S1NE Vertical Band Saw
Specifications:
Blade Speed..........................................................Per Customer Requirements
Band Tension Control............................................Hydraulic
Band Tension Range.............................................0 to 6,000 lbs. (maximum)
Size, Wheel Diameter.............................................52"
Under Guide Capacity............................................20"
Throat Capacity......................................................51.5"
Base Construction..................................................Welded Steel
Band Width Capacity..............................................1 1/4"
Band Length...........................................................27' 3"
Table Size...............................................................36" x 37"
Auxiliary Table Size.................................................18" x 22"
Table Tilting............................................................45° Right, 5° Left
Upper Wheel Adjustment.........................................5"
Wheel Type.............................................................Heavy-Duty Balanced Steel Disc
Gear-Adjusted Guide Post......................................Standard
Table Height............................................................42"
Main Drive...............................................................Variable Speed with Geared Reduction
Main Drive Horsepower...........................................15 H.P.
Electrical Characteristics.........................................480 VAC / 3 Phase / 60 Cycle
Equipped With:
Speedi-Change Replaceable Tires
Electric 2-Wheel Brakes
Complete Electrical Controls
Precision High Capacity Alloy Band Guides
Complete Owner's / Operator's Technical Support Documentation
Manual Blade Tracking Control System
Overall Dimensions.................................................77" L-R x 38" F-B x 126" High (Pit Required)
Weight....................................................................4,000 lbs.
F.O.B......................................................................Michigan

Specifications

ConditionUsed
Stock Number3324
