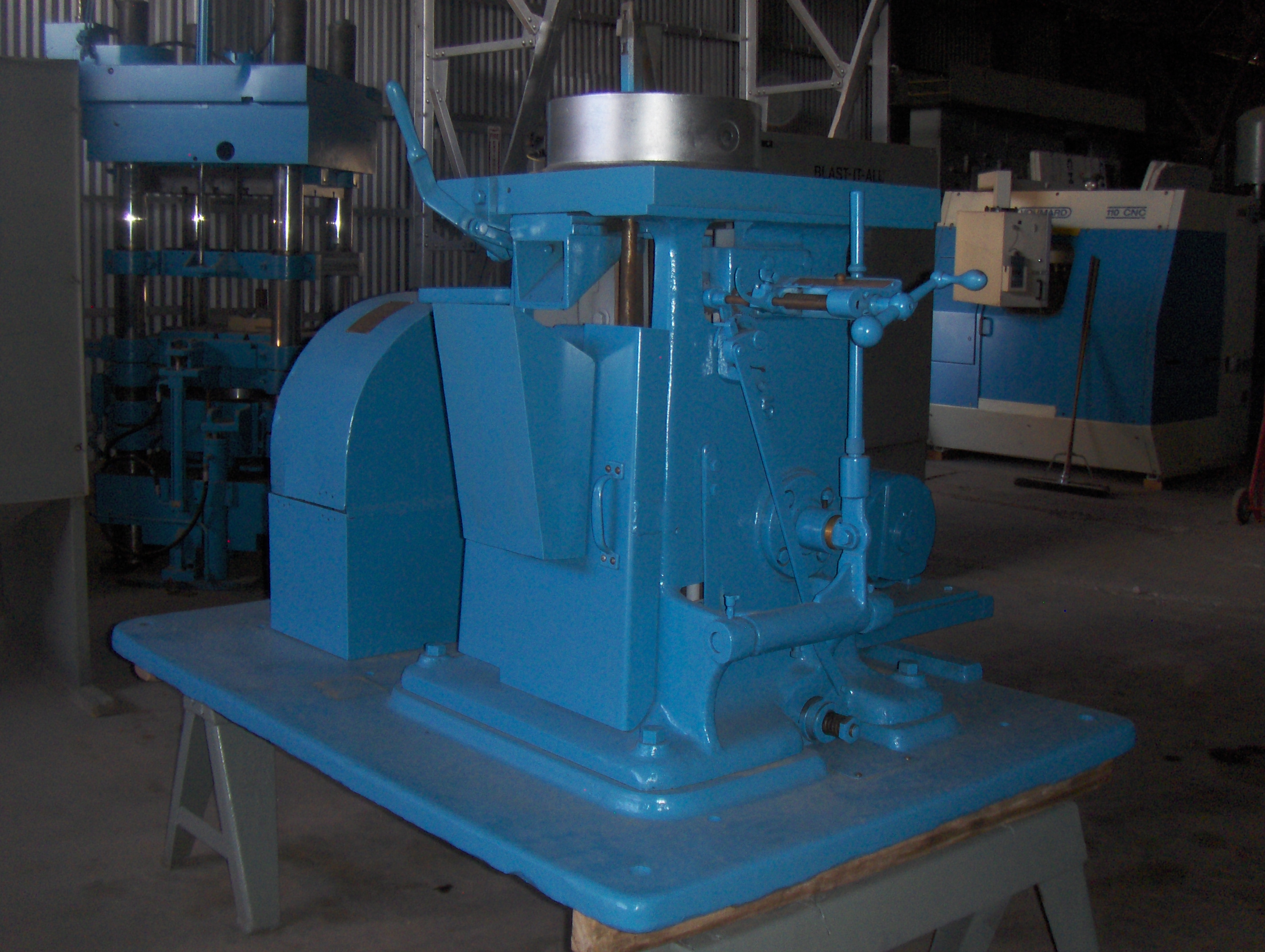

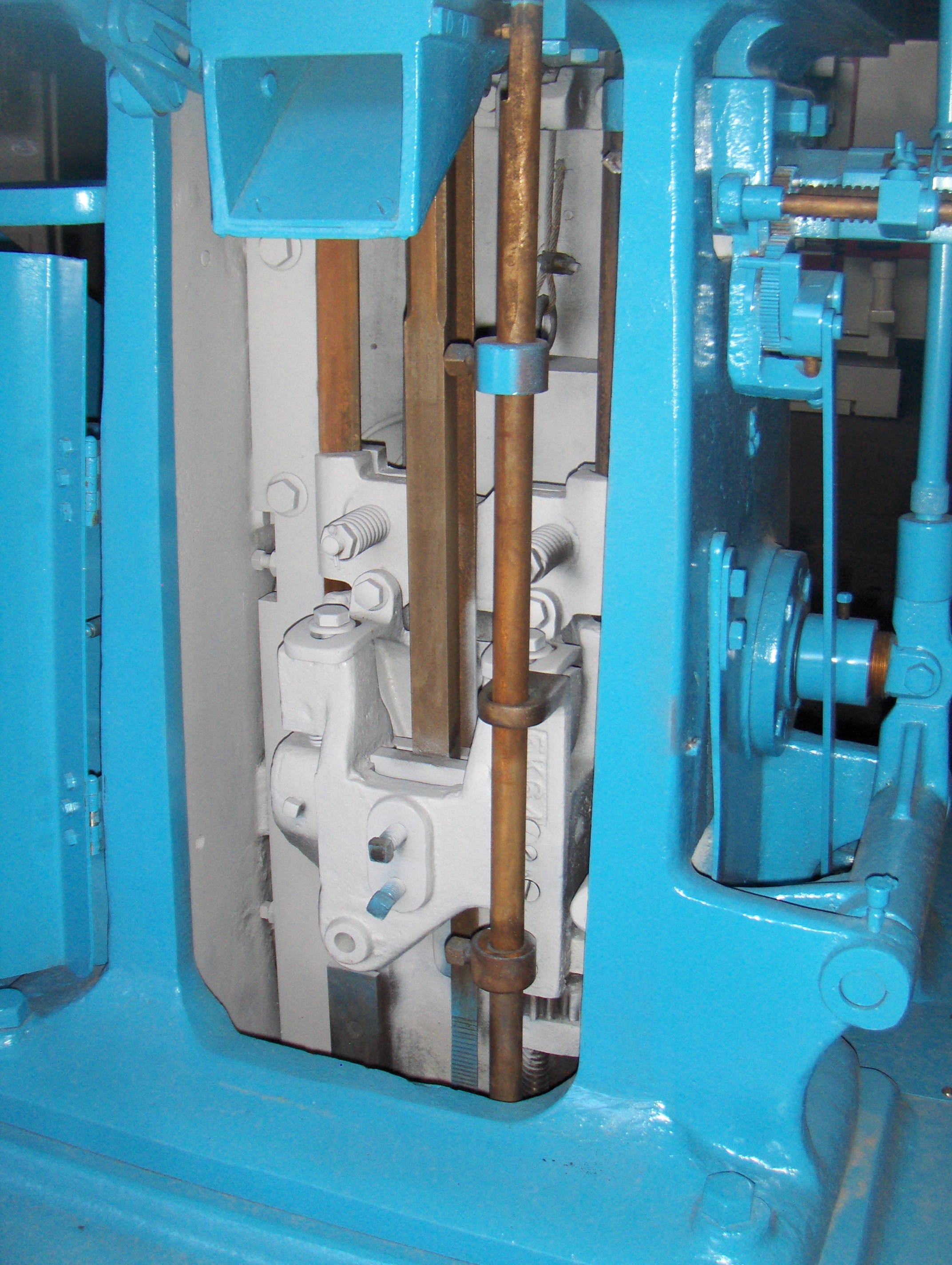

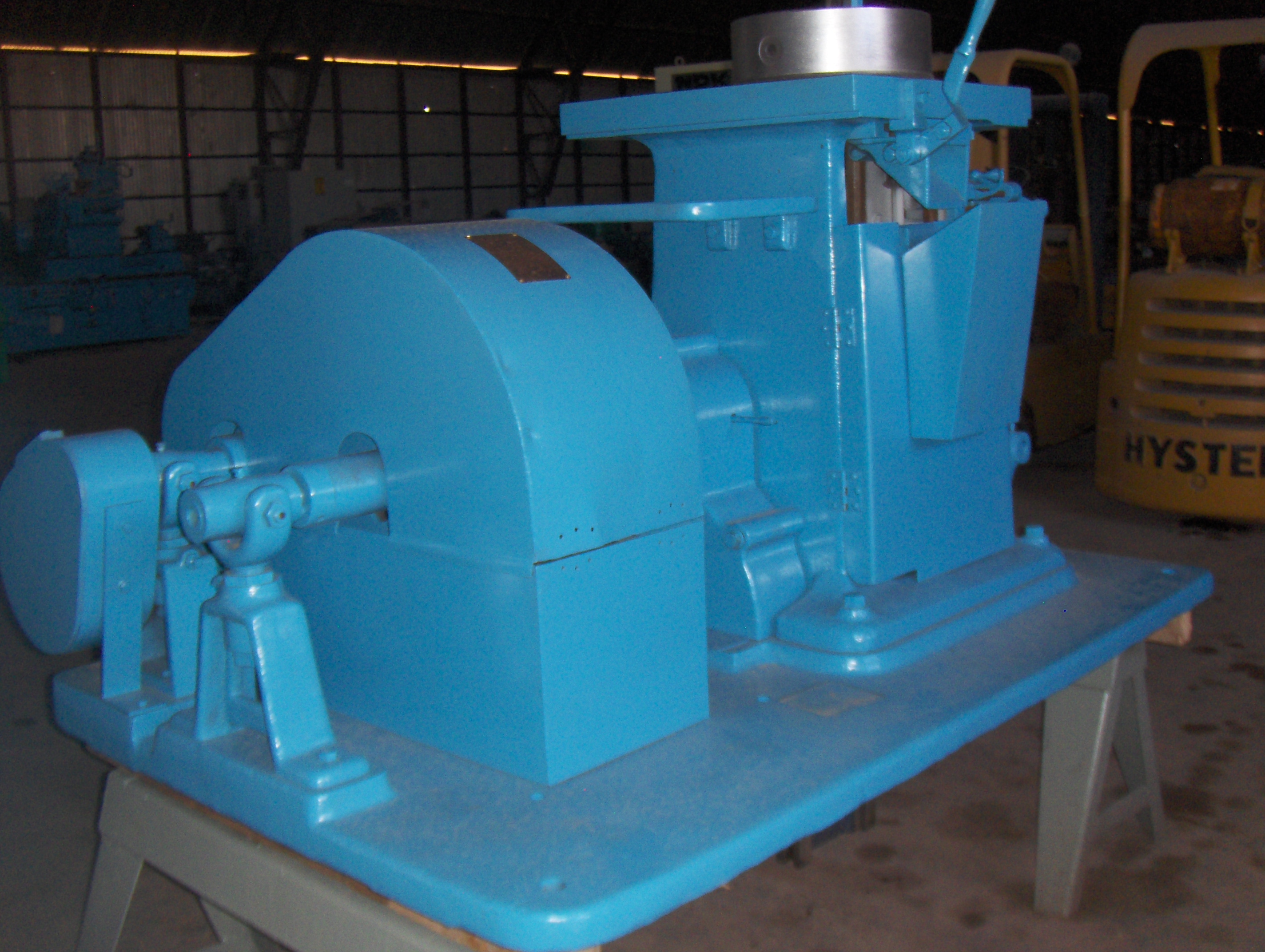

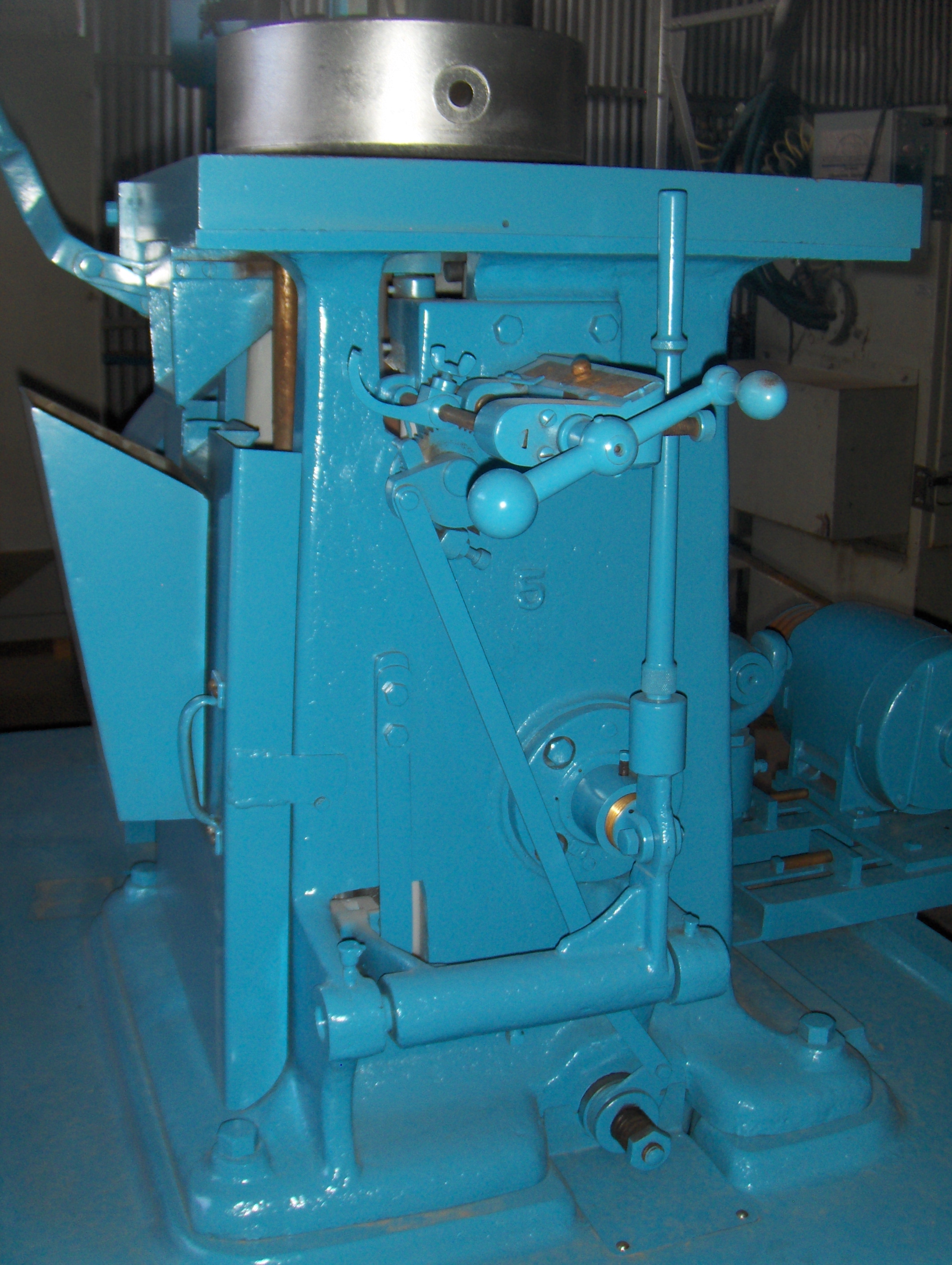

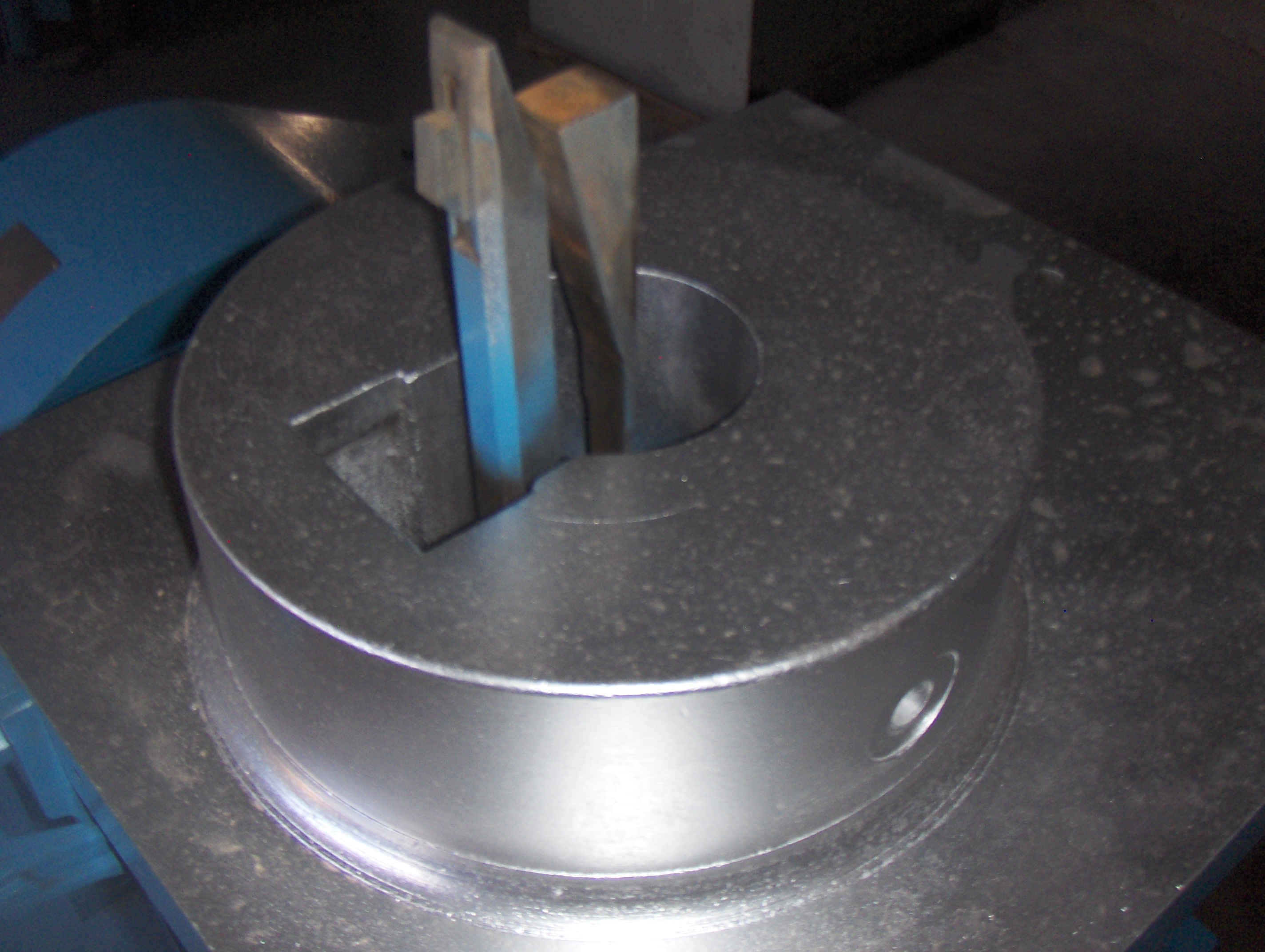

3" Mitts & Merrill Mdl. #5 Keyseater; S/N C26079

3" Mitts & Merrill Mdl. #5 Keyseater; S/N C26079

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used Used 3" Mitts & Merrill #5 Mechanical Keyseater; Specifications: Weight Capacity........................ 8,500 lbs. (properly supported) Keyway Width............................3" Keyway Length (max.)..............24"  (nominal) Stroke........................................ 24" Bore Diameter............................12" (nominal) Table Size................................... Support Hub Diameter.............. Working Speed (infinitely variable)..... 45 FPM Return Speed............................ 70 FPM Pulling Force........................... 960 lbs. Coolant Capacity.................... 10 Gal. Electrical Characteristics........... 240 / 480 VAC / 3 Ph / 60 Cy. Equipped With: Misc. Tooling Overall Dimensions................ 6ft L-R   x   4ft  F-B  x  5ft High (Floor Level) Weight..................................... 6,500 lbs. (est) FOB......Casa Grande, AZ

Specifications

ManufacturerMitts & Merrill
Model#5
Year1946
ConditionUsed
Stock Number3675
