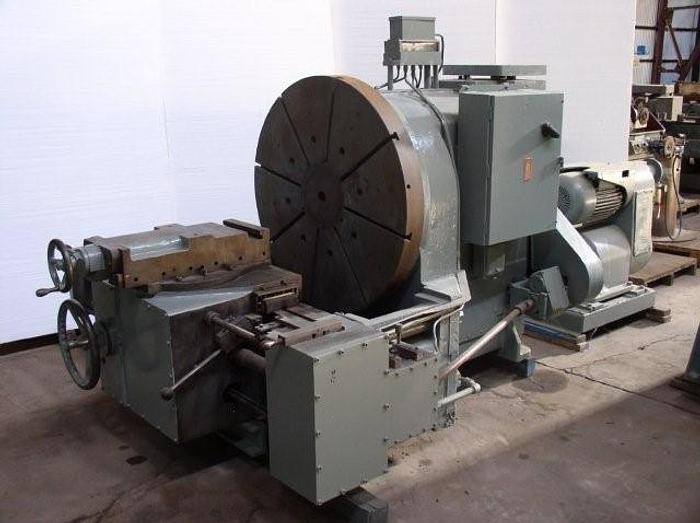

52" Star Facing Lathe

52" Star Facing Lathe

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 52" Star Facing Lathe; S/N 843-A Specifications: Swing Over Bed....................42" Swing Over Cross Slide............ Swing in Gap......................52" Faceplate Diameter..................42" Gap Length........................ Distance Between Centers..........13" nominal Spindle Hole......................4" Spindle Nose...................... Spindle Speeds.................... Number of Feeds and Threads....... Feeding Range..................... Thread Pitch Range................ Main Drive Motor..................20 HP Electrical Characteristics........460 VAC / 3 Phase / 60 Cycle Full Load Current................. Equipped With: 20 HP Reeves variable speed drive Power feeds Complete Electrical Controls Overall Dimensions................89" Wide x 160" Long x 72" High Weight............................15,080 lbs. (est.) F.O.B.............................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number2583
