4” MITTS & MERRILL/ FROMAG, Mdl. RA CNC 100/750, CNC KEYSEATER

4” MITTS & MERRILL/ FROMAG, Mdl. RA CNC 100/750, CNC KEYSEATER

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

4" FROMAG/ MITTS & MERRILL CNC KEYSEATER;

MODEL: RA CNC 100/750

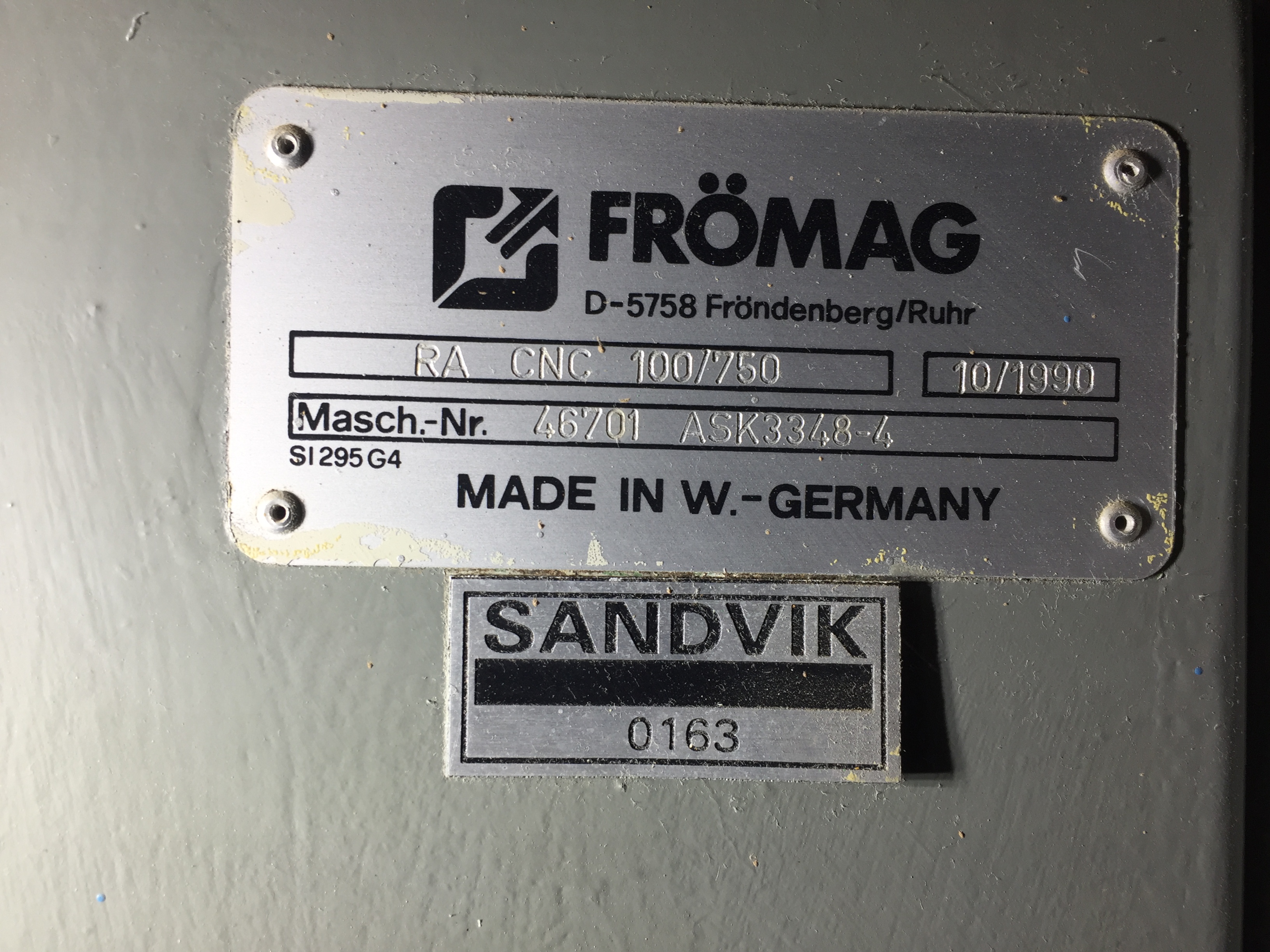

SER #46701 ASK3348-4

YEAR: 1990 SPECIFICATIONS: MAXIMUM KEYWAY WIDTH: 1/8" TO 4" MAXIMUM KEYWAY LENGTH: 30" BORE DIAMETER: 1/2" TO 20" FEED RATE: 0.0004" TO 0.0118" CUTTING SPEED: 0 TO 75 FT / MIN RETURN SPEED: 0 TO 150 FT / MIN MAXIMUM WORKPIECE WEIGHT: 35,000 LBS. CUTTING FORCE:  30,000 LBS. TABLE SIZE: 19.68" L-R X 30.31" F-B OPERATING HEIGHT: 43.30" MOTOR: APPROX. 20 HP EQUIPPED WITH: HYDRAULIC TOOL RETRACTION CNC ROTARY TABLE  (for spiral and spline cutting) SPIRAL CNC CONTROL SYSTEM COMPLETE HYDRAULIC SYSTEM OVER-ARM TOOL GUIDE CHIP REMOVAL CONVEYOR WITH CUTTING OIL RECOVERY SYSTEM APPROXIMATE WEIGHT: 13,800 LBS. OVERALL DIMENSIONS;  6 ft x 6 ft  x  5 ft High (Above Floor with Pit) FOB.......................... Casa Grande, Arizona

Specifications

ManufacturerMitts & Merrill/ Fromag
ModelRA CNC 100/750
Year1990
ConditionUsed
Serial Number46701 ASK3348-4
Stock Number3799
