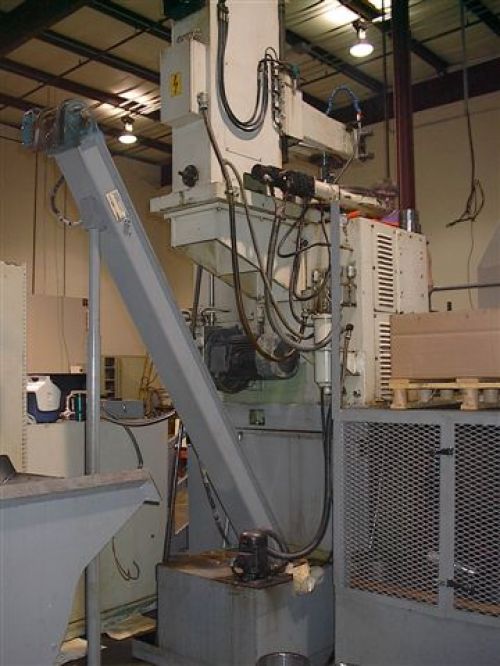

4” FROMAG / MITTS & MERRILL CNC KEYSEATER

4” FROMAG / MITTS & MERRILL CNC KEYSEATER

Casa Grande, AZ

orCall 1-520-836-9727

Description

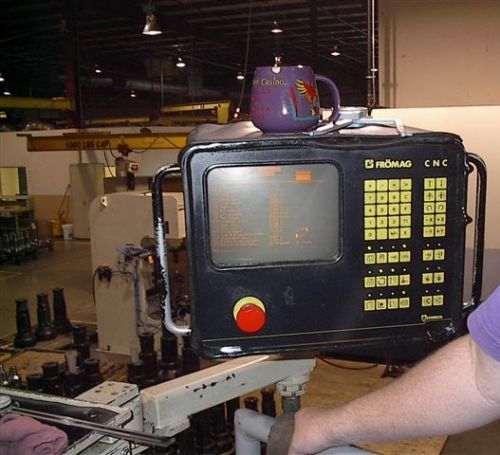

4" FROMAG / MITTS & MERRILL CNC KEYSEATER; SPECIFICATIONS: MAXIMUM KEYWAY WIDTH: 1/8" TO 4" MAXIMUM KEYWAY LENGTH: 30" BORE DIAMETER: 1/2" TO 20" FEED RATE: 0.0004" TO 0.0118" CUTTING SPEED: 0 TO 75 FT / MIN RETURN SPEED: 0 TO 150 FT / MIN MAXIMUM WORKPIECE WEIGHT: 35,000 LBS. CUTTING FORCE:  30,000 LBS. TABLE SIZE: 19.68" L-R X 30.31" F-B TABLE HEIGHT: 12.0" OPERATING HEIGHT: 43.30" MOTOR: APPROX. 20 HP EQUIPPED WITH: HYDRAULIC TOOL RETRACTION CNC ROTARY TABLE  (for spiral and spline cutting) FROMAG SPIRAL CNC CONTROL SYSTEM COMPLETE HYDRAULIC SYSTEM OVER-ARM TOOL GUIDE CHIP REMOVAL CONVEYOR WITH CUTTING OIL RECOVERY SYSTEM APPROXIMATE WEIGHT: 13,800 LBS. OVERALL DIMENSIONS;  6 ft x 6 ft  x  5 ft High (Above Floor with Pit) FOB.......................... Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number3799
