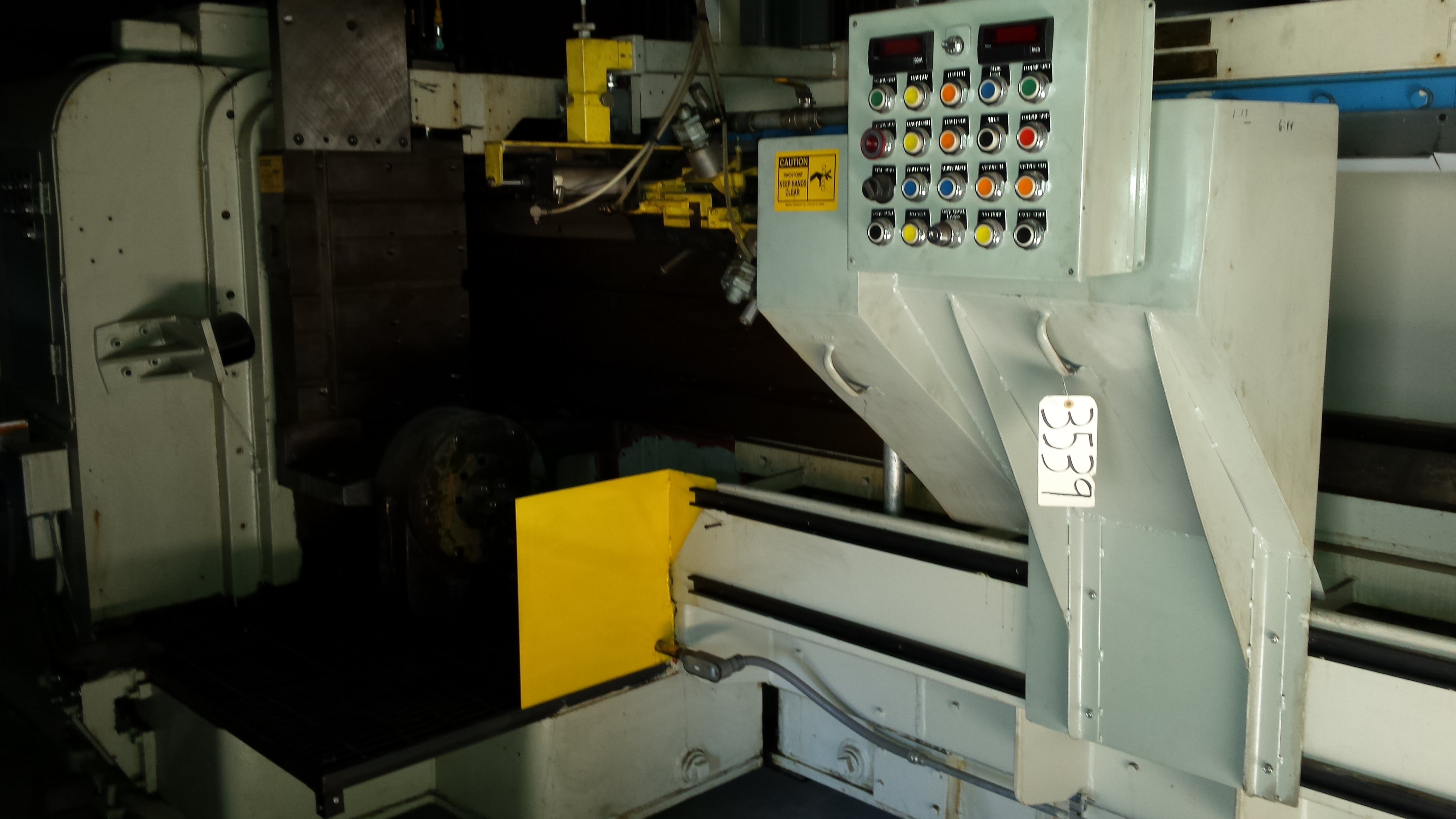

50 Ton x 120" Lapointe Model 50-120 S.R.H.E. Horizontal Surface Broaching Machine; From Aerospace, Mint Condition

50 Ton x 120" Lapointe Model 50-120 S.R.H.E. Horizontal Surface Broaching Machine; From Aerospace, Mint Condition

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

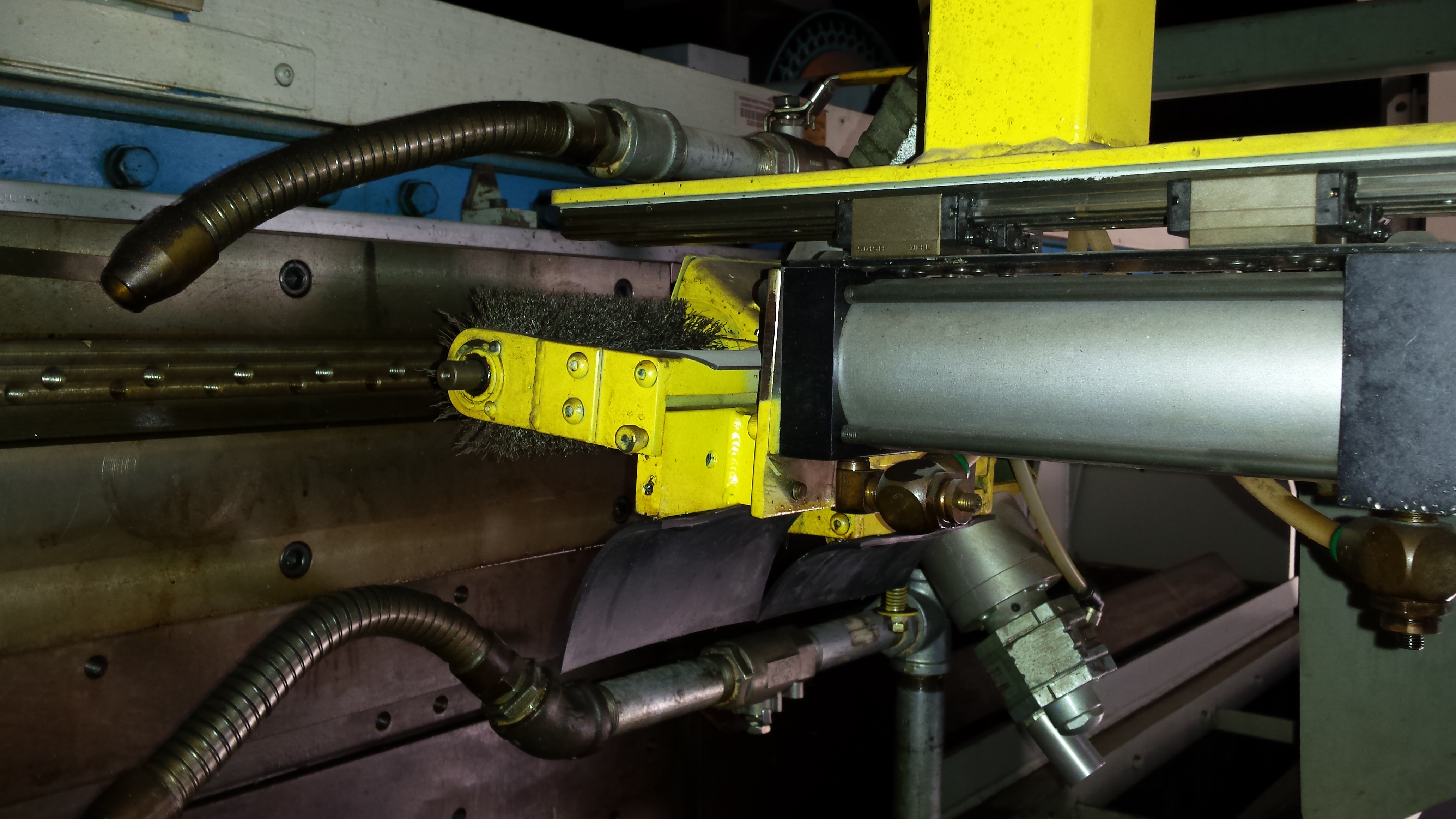

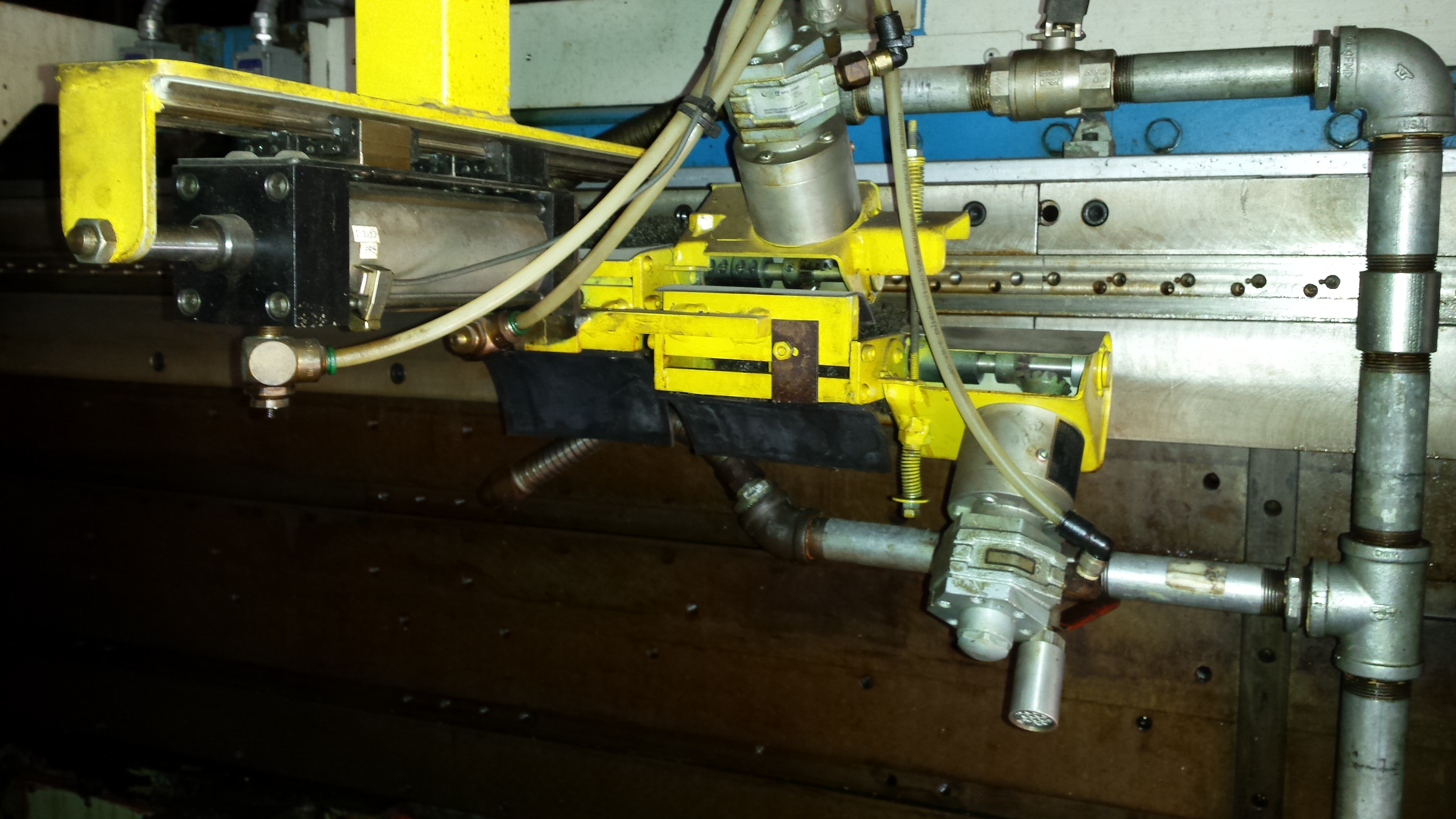

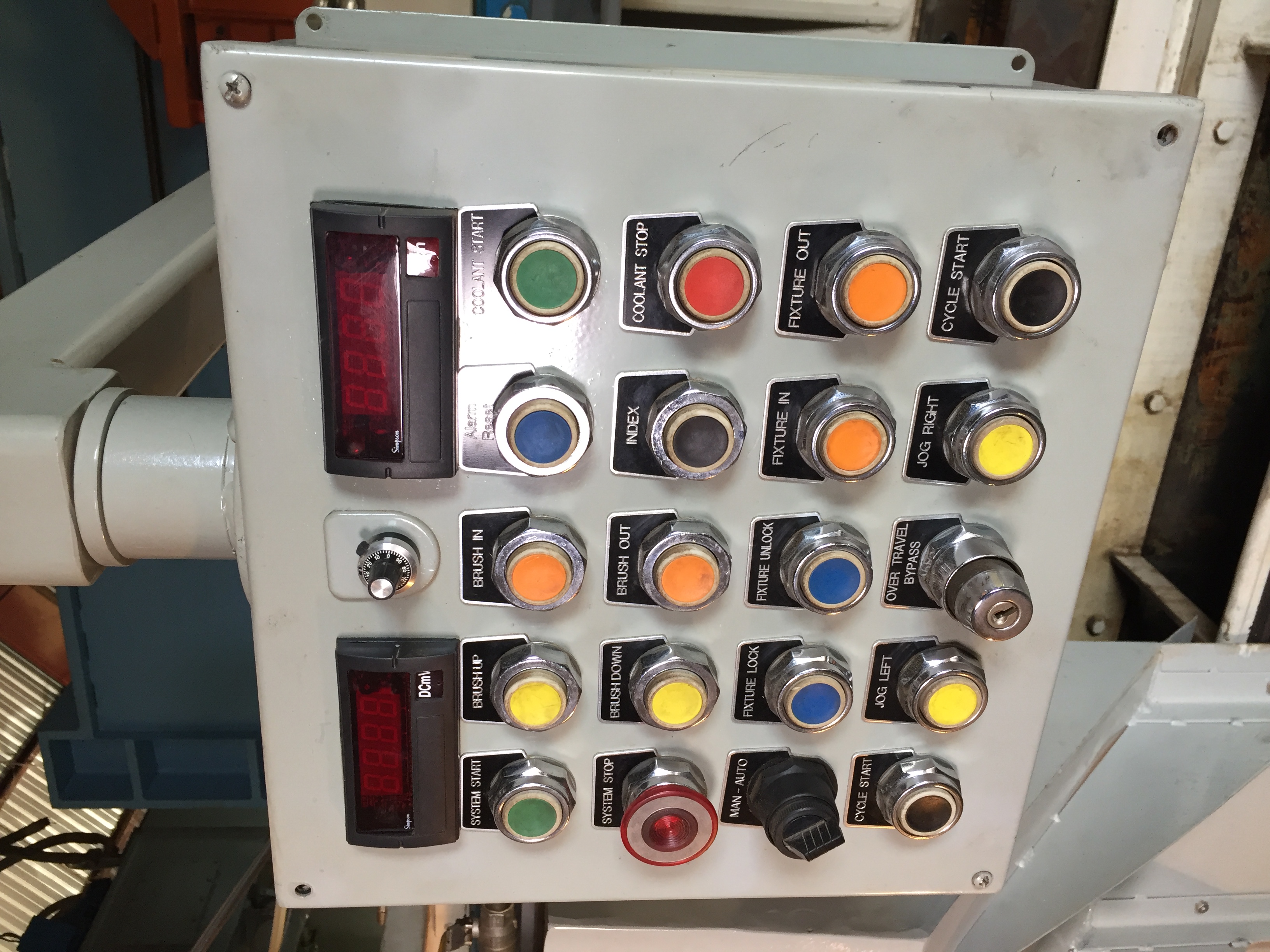

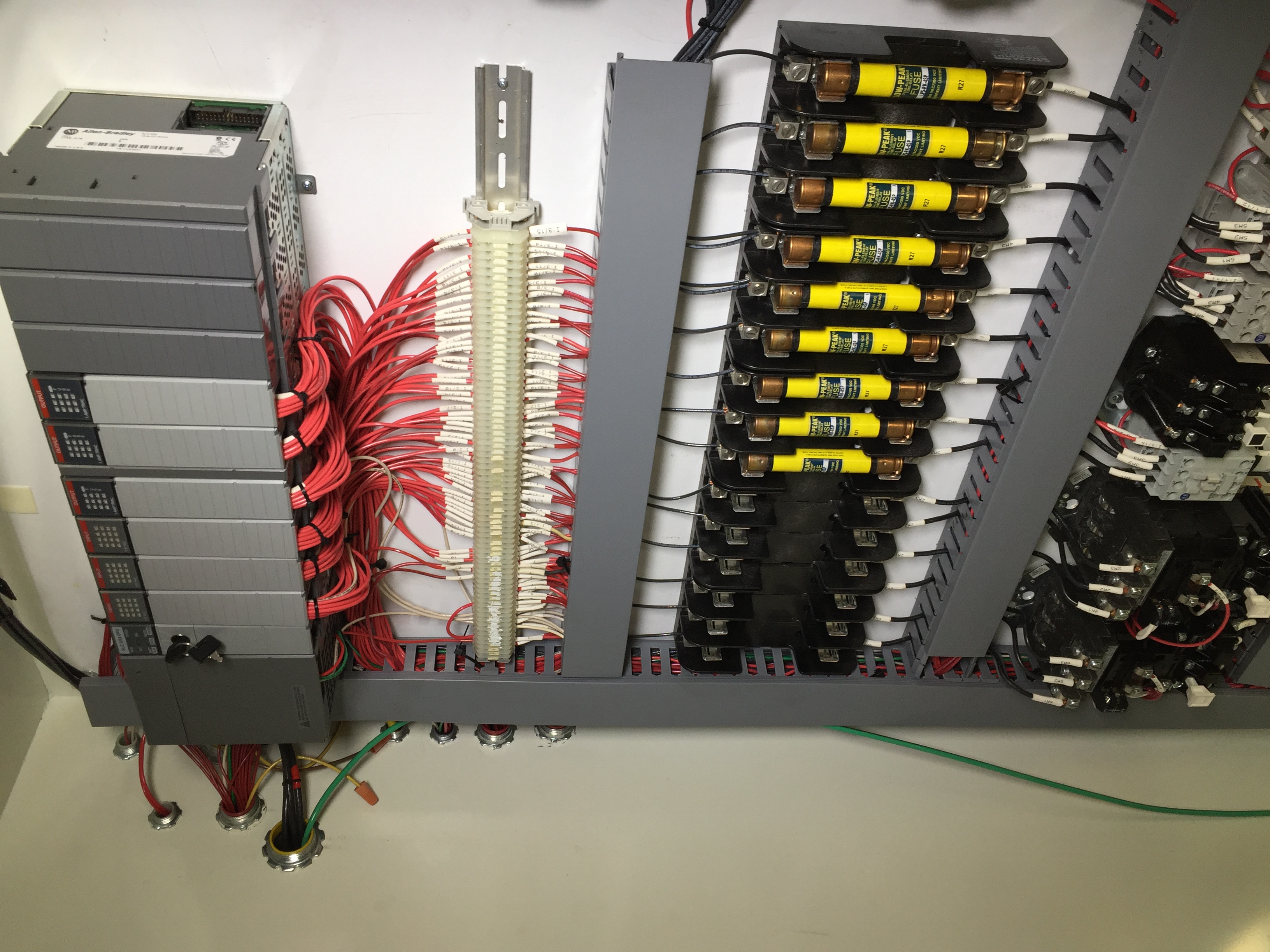

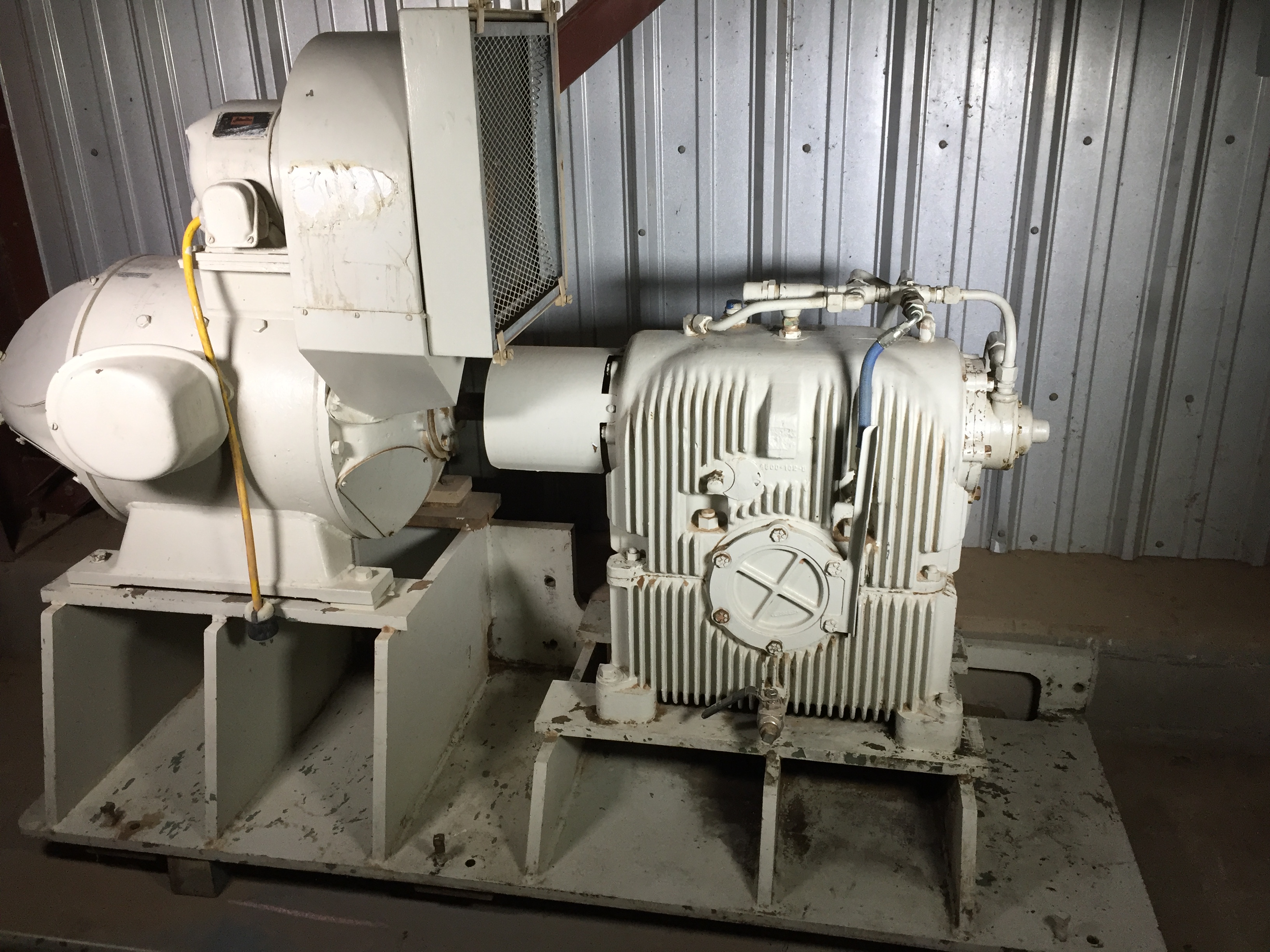

(1) Used 50 Ton x 120" Lapointe Model 50-120 S.R.H.E. Horizontal Surface Broaching Machine; S/N 55065 Specifications: Capacity..........................50 Tons Stroke............................120" Face Plate Width..................26 1/2" Table Size........................26" H x 150" L Tool Holder Size..................26" H x 19" W Clearance Between Ways............10 3/4" Speed Range.......................7 - 70 FPM Return Speed......................120 FPM Work Height to Table Centerline...48" (nominal) Main Drive Motor: Manufacturer.................Westinghouse Output.......................25 HP Direct Current (DC) Speed........................250-1200 RPM Hydraulic System: Type.........................HPV Power........................20 HP Max. Pressure................3,000 PSI Pump.........................Continental HPV-15B35-RF-0-1R-B Flow.........................15.83 GPM @ 1750 RPM Fluid Capacity...............73 Gallons (est.) Electrical Characteristics........220/480 VAC / 3 Phase / 60 Cycle Equipped With: Flood Type Coolant System Automatic Lubrication System Full Length Non-Metallic "V" Type Slide Gibbs Allen-Bradley Controls Automatic Brush Cleaning Attachment Michigan Tool 15:1 Gear Reduction Drive Unit Herringbone Gear Final Drive Approx. Overall Dimensions........185" L x 106" W x 97" H Weight............................55,000 lbs. (est.) FOB...............................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number3539
