500 KW Hydro-Electric Generating System; MFG 1985 by Teledyne / Kato / XTEK

Casa Grande, AZ

orCall 1-520-836-9727

Description

REC # 2586
(1) Used 500 KW LOUIS-ALLIS KATO / TELEDYNE  Hydro-Electric Generating System; MFG. 1985
Specifications:
Turbine (Runner):
Manufacturer..................................Teledyne
Type...............................................Francis (vertical axis)
Diameter (nominal).........................72"
Design Head...................................20.6 ft
Rated Discharge.............................332 cu.ft/sec
Radial Bearing................................Thordon Type
Wicket Gates:
Type...............................................Butterfly
Number...........................................24
Size.................................................
Opening (Maximum)......................
Control System...............................Hydraulic
Speed Increaser:
Manufacturer..................................XTEK, Inc.
Type...............................................T.S.P.
Ratio...............................................8.18
Horsepower....................................800 HP @ 900 RPM (rated output)
Service Factor................................1.75
Alternator:
Manufacturer..................................Kato / Reliance Electric
Type...............................................8PG - 2700
Output............................................500 kW @ 900 RPM
Voltage...........................................2,400 / 4,160 VAC / 3 Phase / 60 Cycle
Equipped With:
(1) Used 74" Diameter Francis Type 14 Bucket Turbine / Runner Assembly; 720 HP @ 110 RPM; complete with 24 gates, headcover with hydraulic actuator assembly, drive shaft with coupling and all components as designed, engineered and installed by W.J. Bauer, Inc. & Lunda Construction Co. 1984-1986

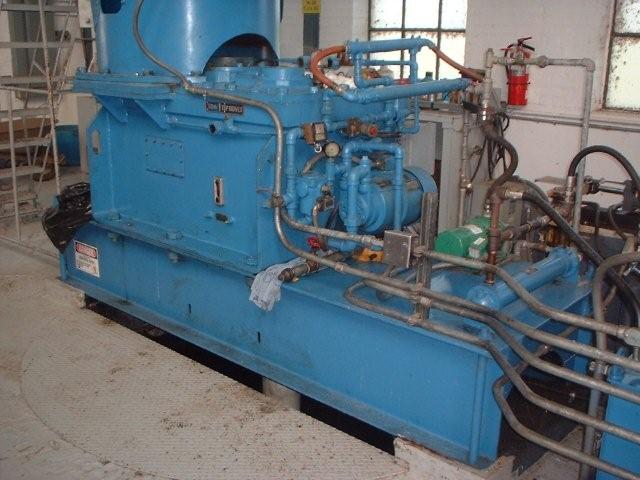

(1) Used Xtec Type TSP Speed Increaser; S/N SR-1968; with Gearbox Bridge, Replacement Gear Set and Shaft
(1) Used 500 kW Kato Synchronous AC Generator with Mounting Bracket and Coupling; S/N 91611; Catalog # 8PG-2700

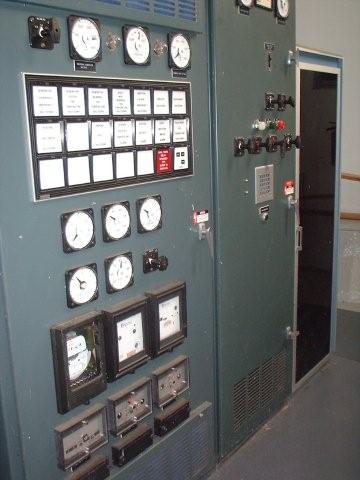

(1) Used 5 kV Louis-Allis Switchgear System; Order # 5-896090; Complete with Interconnecting Controls and Processors; 4,160 VAC / 3 Phase / 60 Cycles; S/N 5-896094 & 5-896095

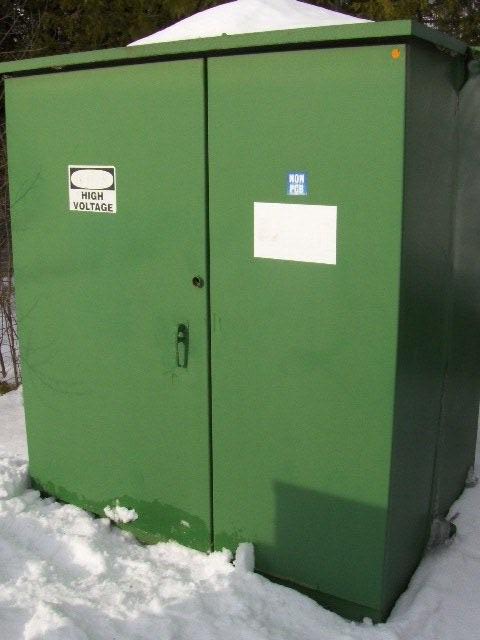

(1) Used 750 kVA Niagara Transformer; 3 Phase / 60 Cycles; Class O.A.; S/N 50104
(1) Used 500 kVA Niagara Transformer; 3 Phase / 60 Cycles; Class O.A.; S/N 49888
(1) Used 75 kVA Federal Pacific Dry Type Transformer; 3 Phase / 60 Cycles, S/N 10882-                 002

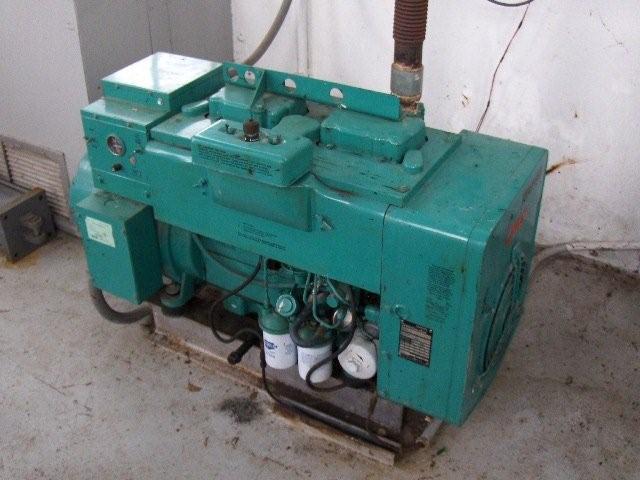

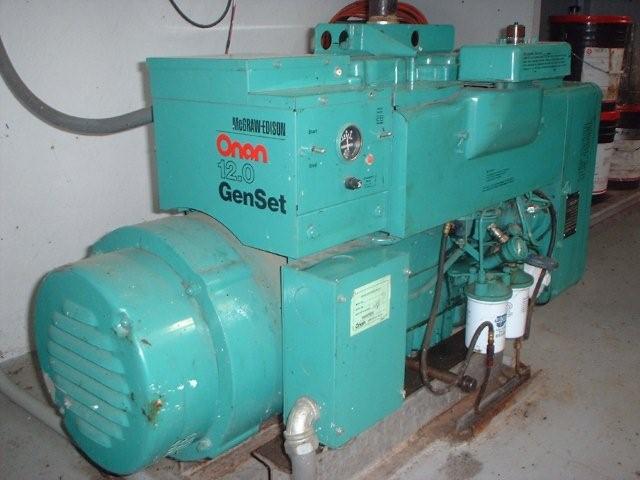

(1) Used 12 kW Onan Diesel Generator; 480 VAC / 3 Phase / 60 Cycles; equipped with                     Fuel Tank, Transfer Switches & Controls; S/N C-850752202

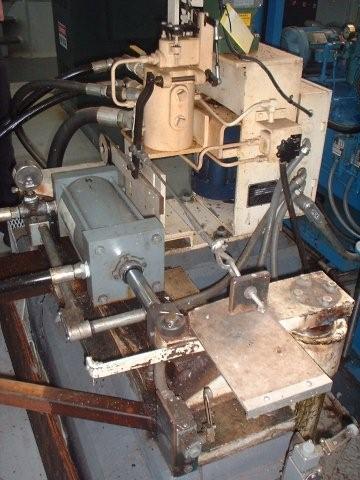

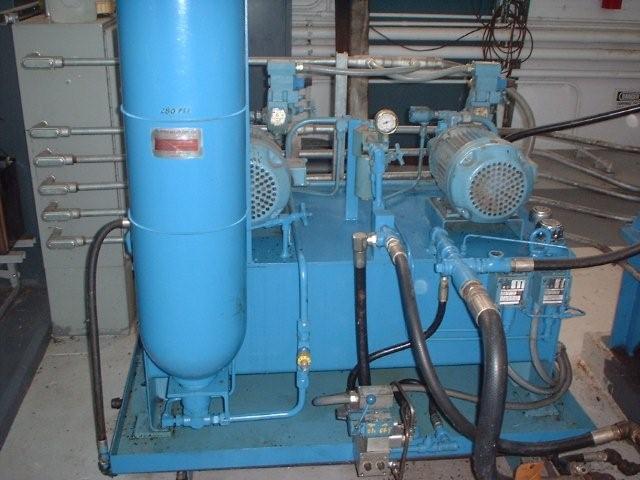

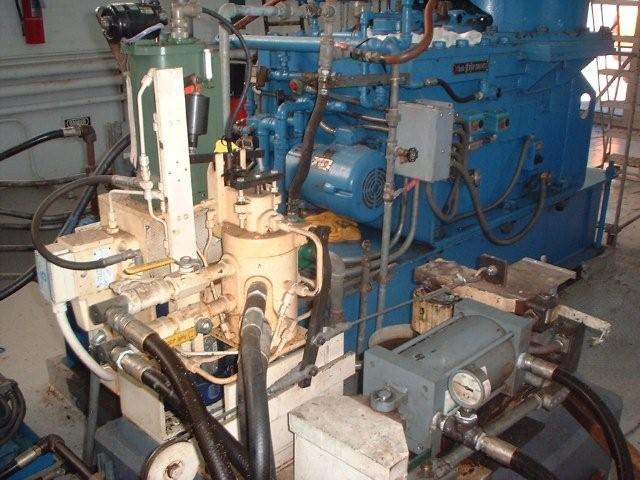

(1) Used Walter Norris / Sperry Vickers Hydraulic Power Unit with controls; S/N 4242

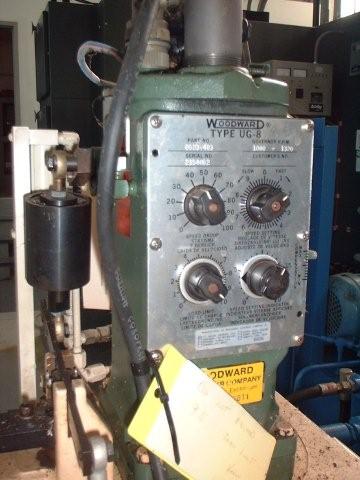

(1) Used Woodward Type UG-8 Governor Control Unit; Size 2; S/N 2002798
(1) Used Lot of Buoys, Bubblers, Floats, Insect Foggers, Pumps, and Agitators.
(1) Lot of Misc. Replacement Parts and Components for Referenced Equipment
Weight................................................. 60,000 lbs. (estimated total)
F.O.B....................................................Michigan

Specifications

ConditionUsed
Stock Number2586
