1,000 kW Hydro-Electric Generating System; MFG 1985 by Teledyne / Louis-Allis

1,000 kW Hydro-Electric Generating System; MFG 1985 by Teledyne / Louis-Allis

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

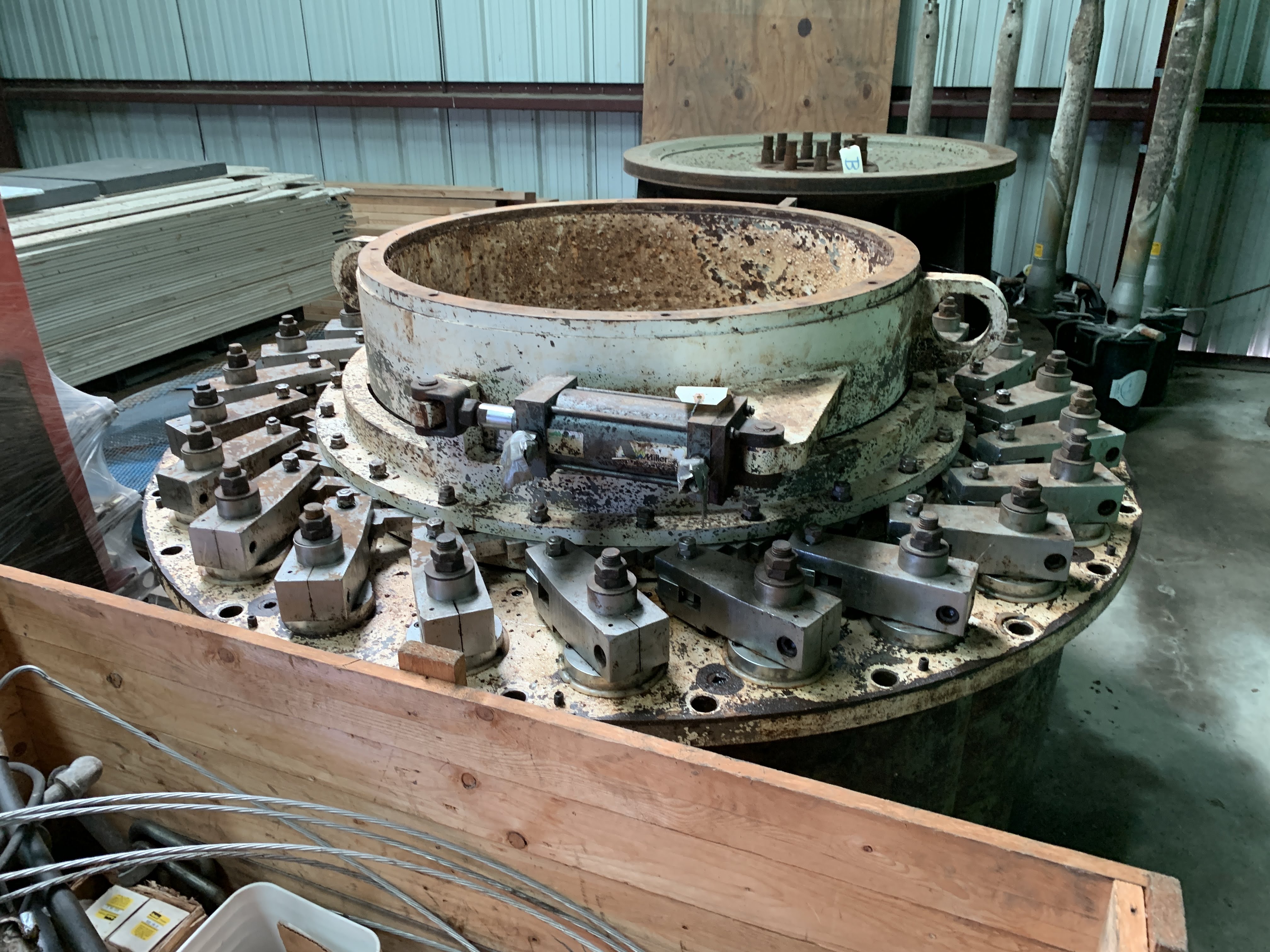

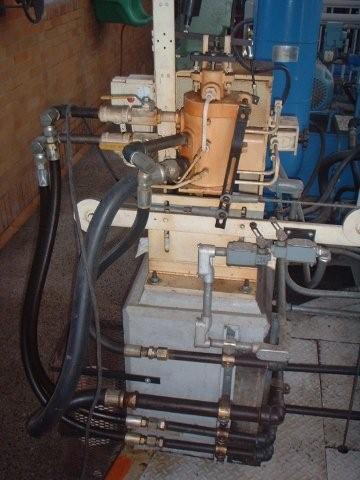

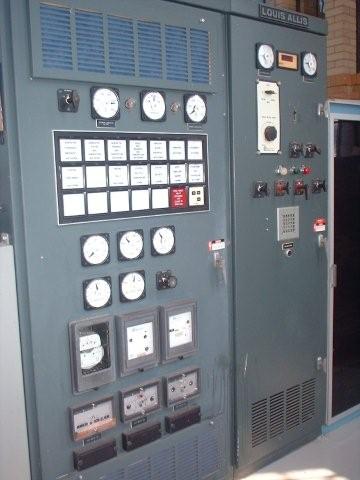

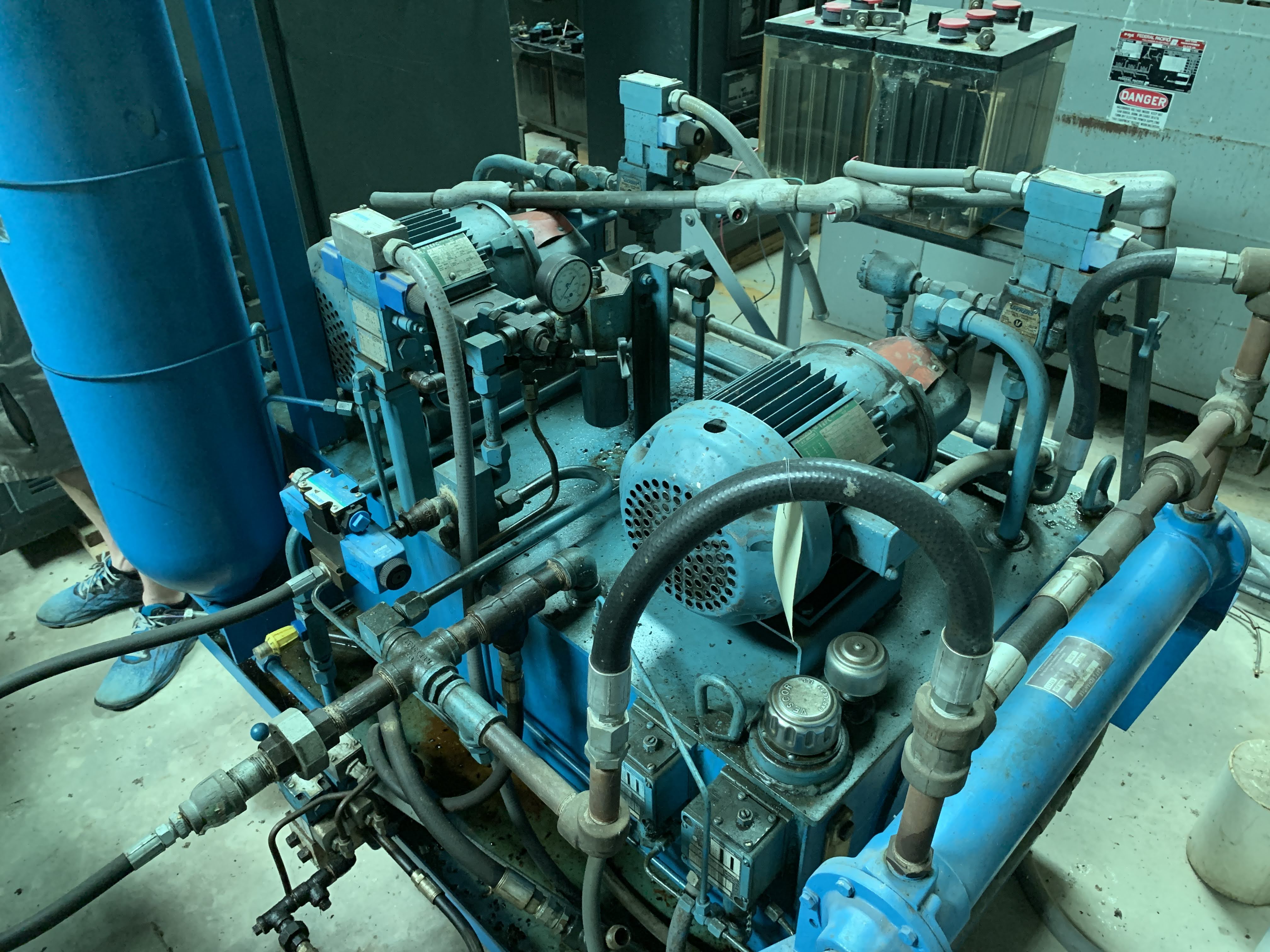

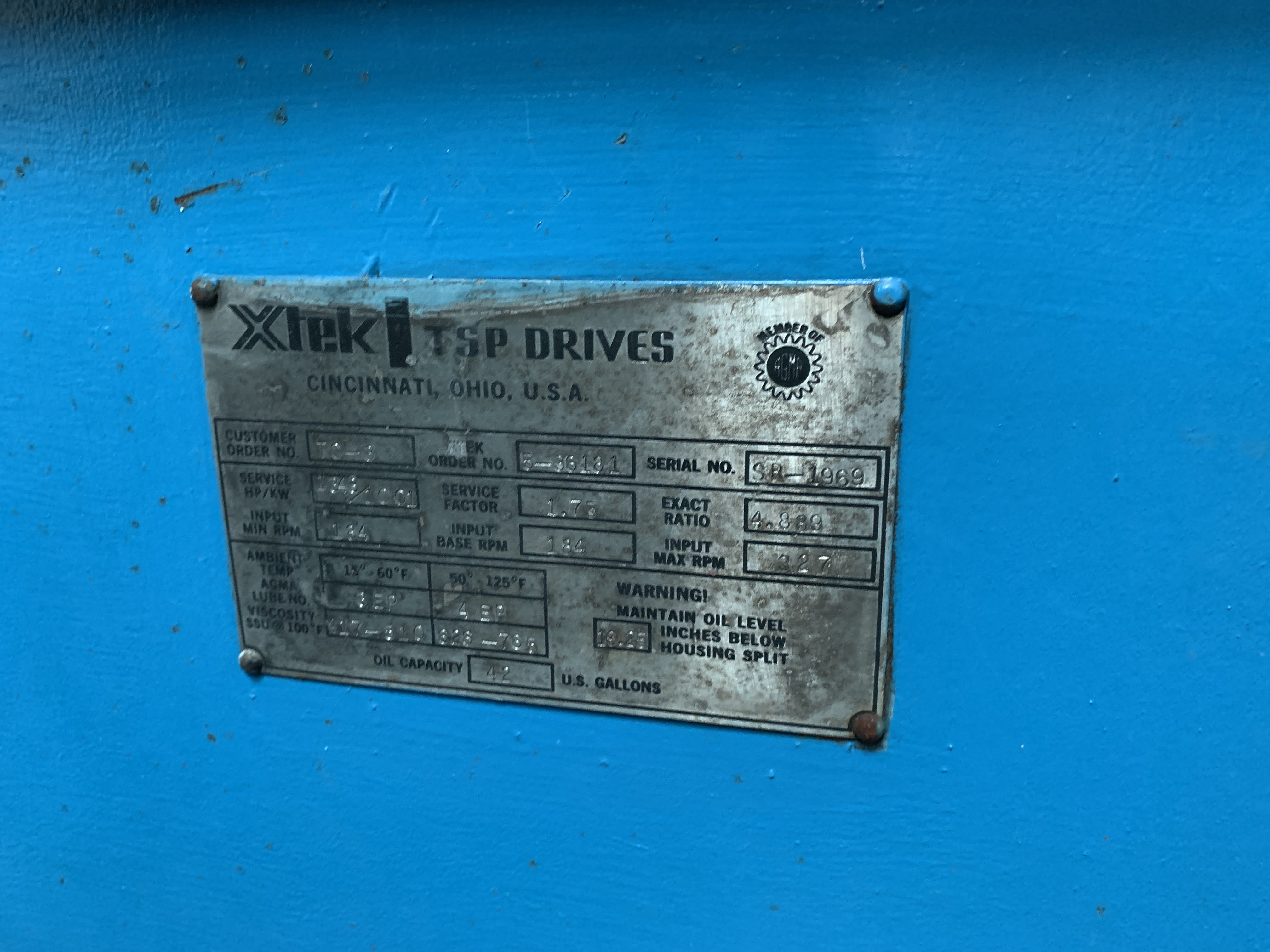

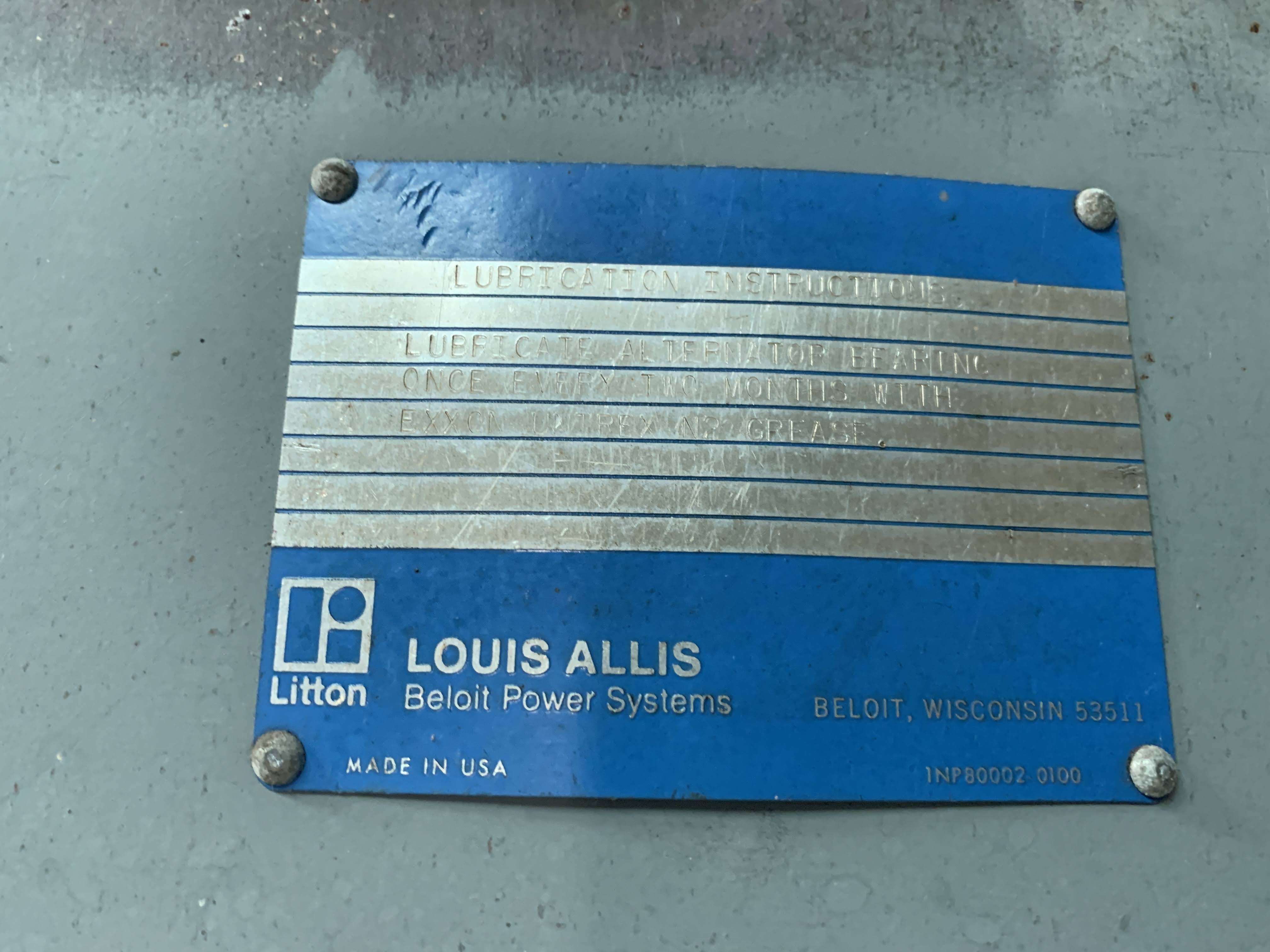

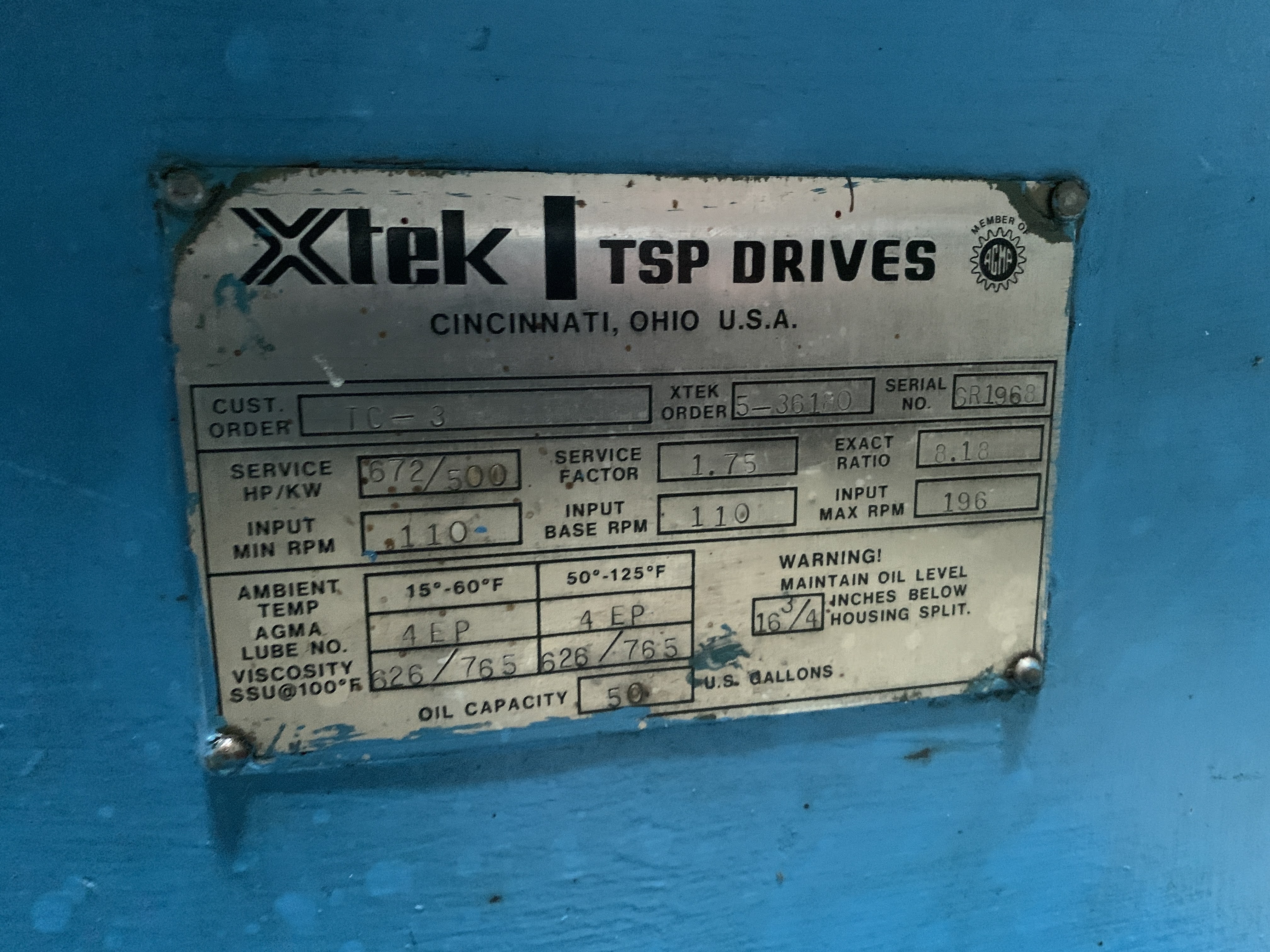

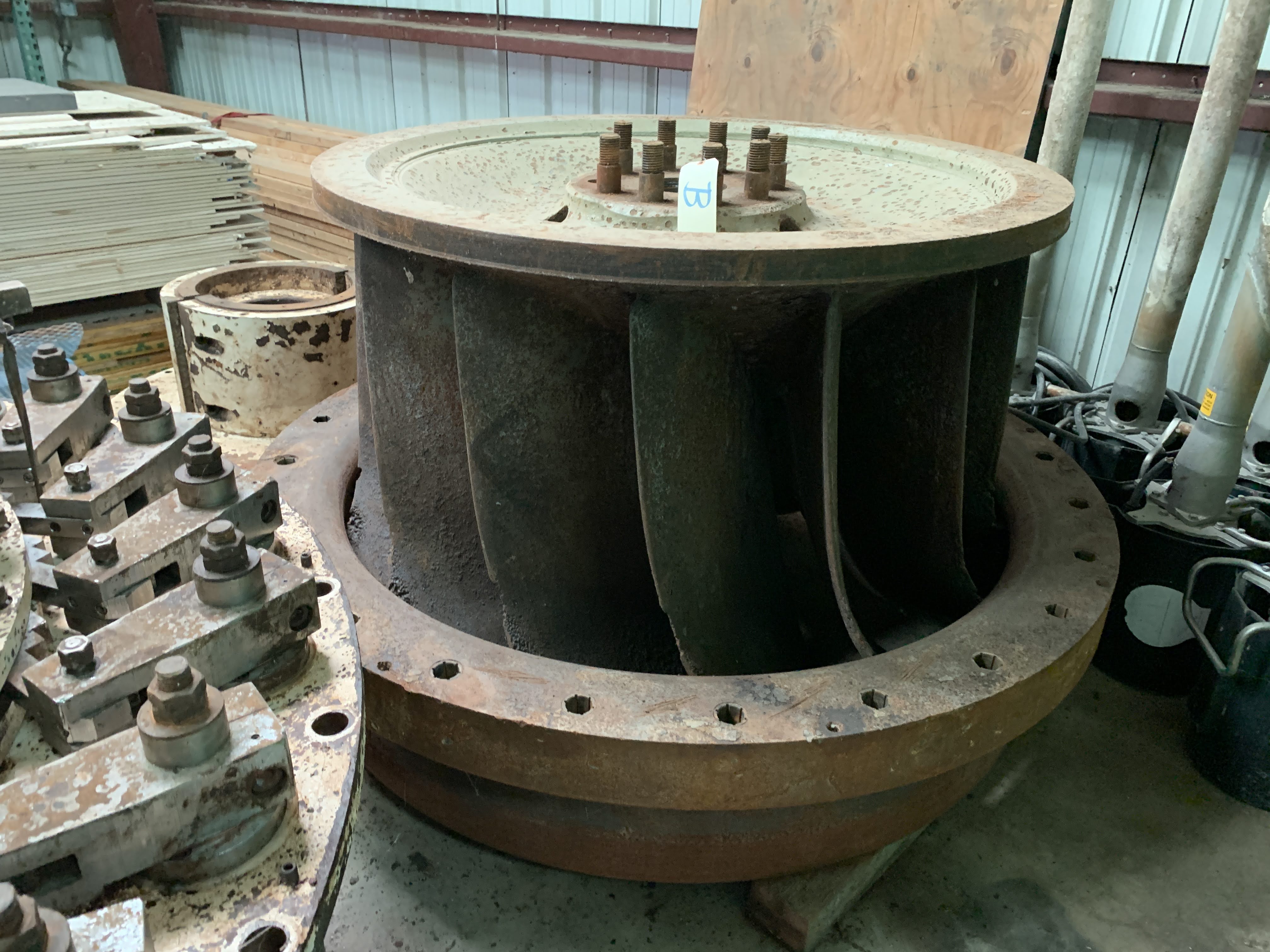

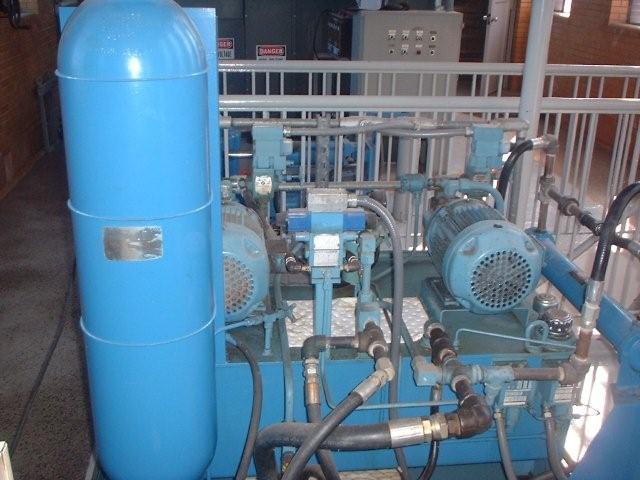

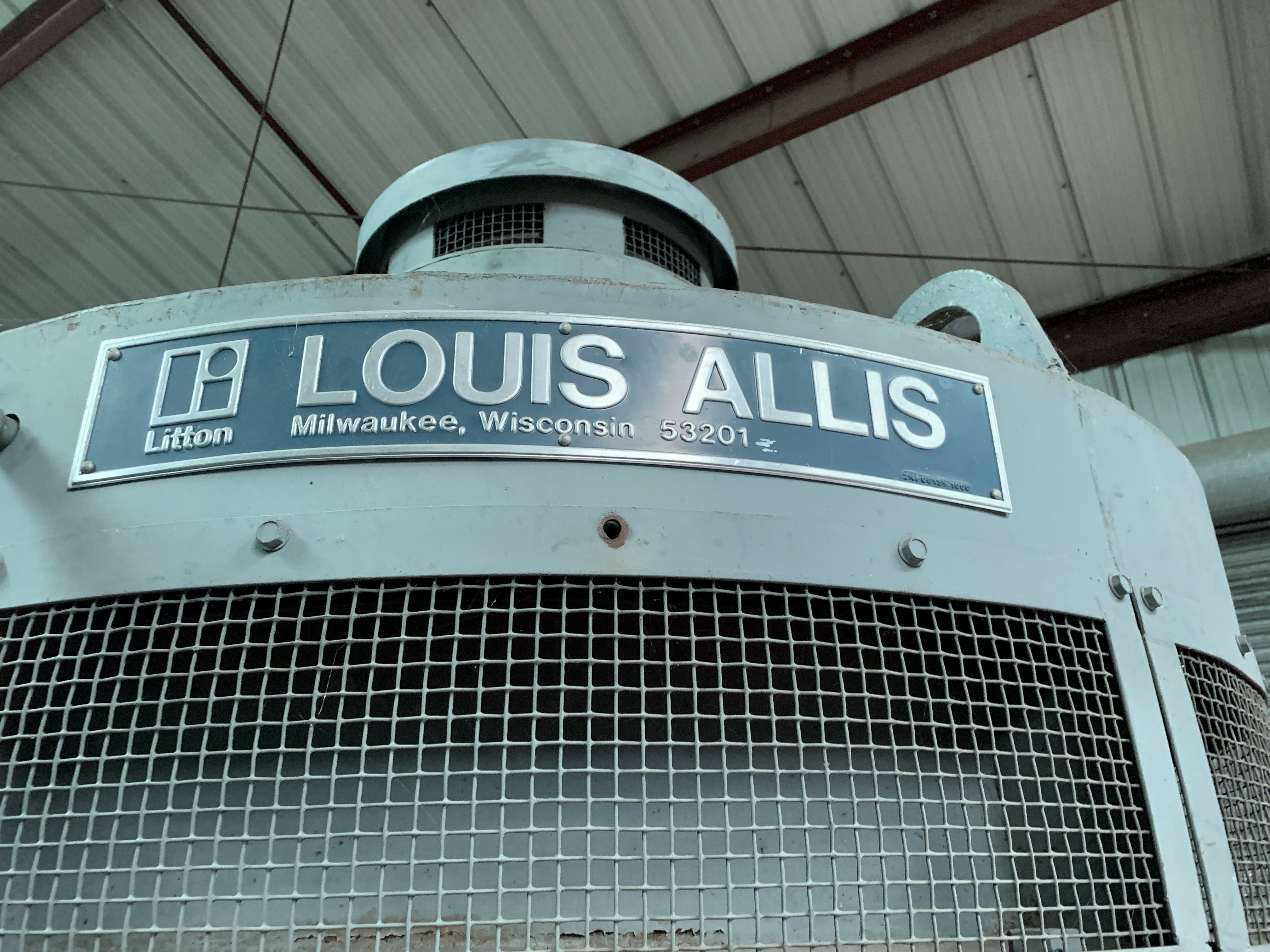

REC # 2585 (1) Used 1,000 KW LOUIS-ALLIS / TELEDYNE Hydro-Electric Generating System; MFG. 1985 Specifications: Turbine (Runner) Manufacturer.....................................Teledyne Type..................................................Francis (vertical axis) Diameter (nominal)............................60" Design Head......................................41 ft. Rated Discharge...............................332 cu.ft/sec. Radial Bearing..................................Thordon Wicket Gates: Type.................................................Butterfly Number.............................................24 Control System.................................Hydraulic Speed Increaser: Manufacturer....................................XTEK, Inc. Type.................................................T.S.P. Ratio.................................................4.889 @ 900 RPM Horsepower......................................1,343 HP (rated output) Service Factor..................................1.75 Alternator: Manufacturer....................................Louis-Allis Type.................................................Synchronous / Vertical Output..............................................1,000 kW @ 900 RPM Voltage.............................................4,160 VAC / 3 phase / 60 cycles Equipped With: (1) Used 60" Diameter Francis Type 14 Bucket Turbine / Runner Assembly; 1,400 HP @ 184 RPM; complete with 24 gates, headcover with hydraulic actuator assembly, drive shaft with coupling and all components as designed, engineered and installed by W.J. Bauer, Inc. & Lunda Construction Co. 1984-1986 (1) Used Xtec Type TSP Speed Increaser; S/N SR-1969; with Gearbox Bridge (1) Used 1,000 kW Louis-Allis Synchronous AC Generator; with Mounting Bracket and Coupling; S/N 5-275906-001; Type TBGZDKU (1) Used 5 kV Louis-Allis Switchgear System; Order # 5-896090; Complete with Interconnecting Controls and Processors; 4,160 VAC / 3 Phase / 60 Cycles; S/N 5-896091 & 5-896092 (1) Used 1,200 kVA Niagara Transformer; 3 Phase / 60 Cycles; Class O.A.; S/N 49887 (1) Used 1,250 kVA Niagara Transformer; 3 Phase / 60 Cycles; Class O.A.; S/N 50103 (1) Used 75 kVA Federal Pacific Dry Type Transformer; 3 Phase / 60 Cycles, S/N 10882-001 (1) Used 12 kW Onan Diesel Generator; 480 VAC / 3 Phase / 60 Cycle; equipped with             Fuel Tank, Transfer Switches & Controls; S/N A850746011 (1) Used Walter Norris / Sperry Vickers Hydraulic Power Unit with controls; S/N 4241 (1) Used Woodward Type UG-8 Governor Control Unit; Size 2; S/N 2002797 (1) Lot Used Buoys, Bubblers, Floats, Insect Foggers, Pumps, and Agitators. (1) Lot of Misc. Replacement Parts and Components for Referenced Equipment Overall Dimensions................................. Weight....................................................80,000 lbs. (estimated total) F.O.B...................................................... Michigan


Specifications

ConditionUsed
Stock Number2585
