90 hp Rexroth Oilgear Hydraulic Unit 1,500 PSI 500 gal

90 hp Rexroth Oilgear Hydraulic Unit 1,500 PSI 500 gal
Casa Grande, AZ
orCall 1-520-836-9727
Description

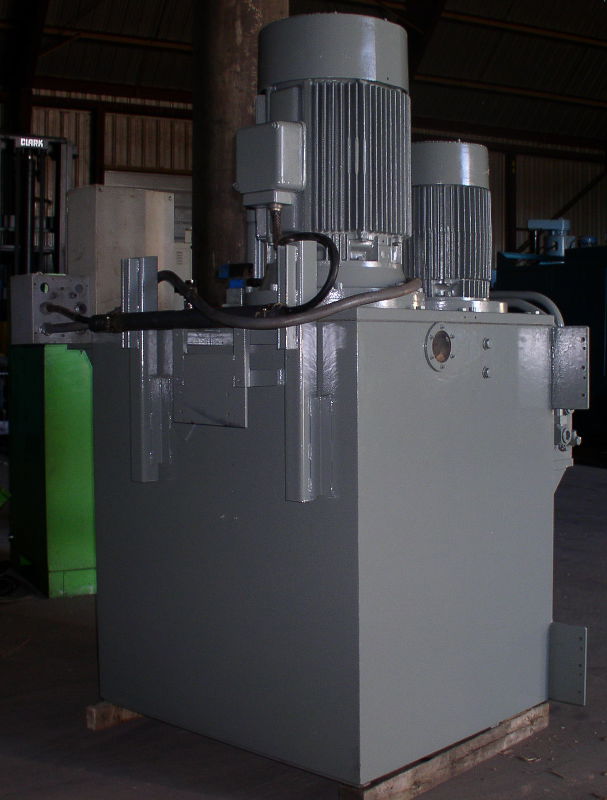

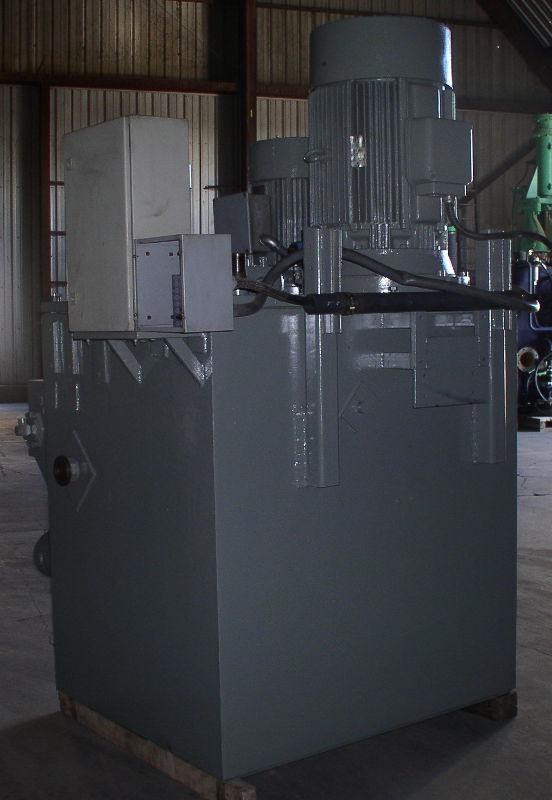

(1) Used Hydraulic Power Supply & Electrical Panel
Specifications:
System Manufacturer..................
.................
Model #.............................
...........................
Serial #.............................
...........................
Pump #1............................
..........................
Rexroth
Type #.............................
......................
A7V500LV5-1RPF0D
Serial #.............................
.......................
USA57677
P.S.I........................
..............................
..4569
G.P.M........................
..............................
115 @ 900 RPM (capable of 230 @ 1800)
R.P.M........................
..............................
900
Pump #2............................
...........................
Oilgear
Model #.............................
......................PVWH-45-
RDRS-CNNNTH-CP
Serial #.............................
.......................
04544838
P.S.I........................
..............................
..2500 (rated continuous), 3000 (peak)
G.P.M........................
..............................
36 @ 1500
R.P.M........................
..............................
1500
Pump #3............................
...........................
Oilgear
Model #.............................
......................PVWH-60-
RDRS-CNNNTH-
Serial #.............................
.......................
03524714
P.S.I........................
..............................
..1500 (rated continuous), 2000 (peak)
G.P.M........................
..............................
48.5 @ 1500
R.P.M........................
..............................
1500
Tank Capacity......................
.......................490 Gallons
Tank Dimensions....................
.....................43" L x 51" W x 55" H
Valves........................
..............................
....Multiple
Primary Motor.........................
.....................
Output.......................
.............................
60 HP
Speed........................
.............................
900 RPM
Amps.........................
.............................
77
Secondary Motor.........................
................
Output.......................
.............................
30 HP
Speed........................
............................1,
500 RPM
Amps.........................
.............................
42
Electrical Characteristics...............
..............
Equipped With:
Pump #1 is equipped with a constant horsepower control (as pressure increases, maximum volume decreases - as pressure decreases, maximum volume increases

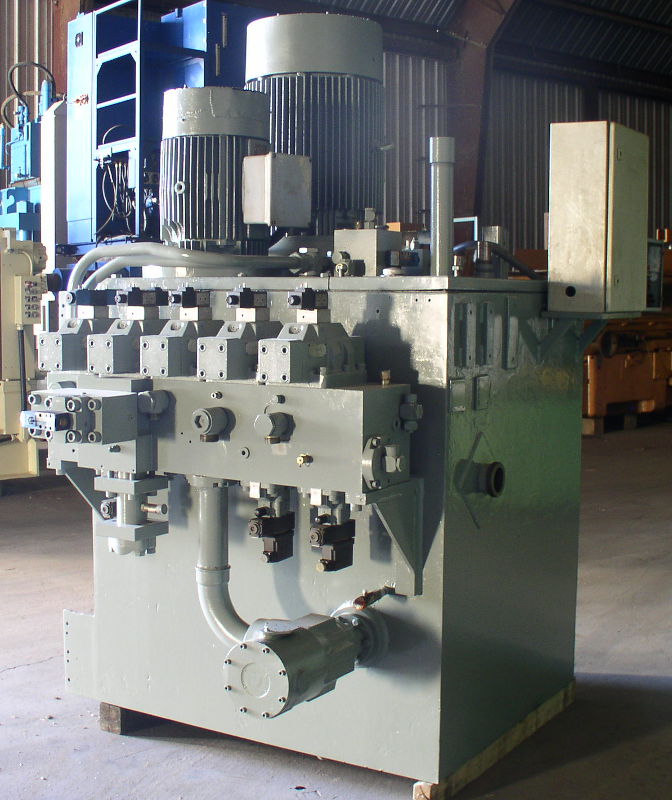

Valves
(2) Continental 3 Possision 4 Way Valve
(3) Continental 2 Possision 4 Way Valve
(3) Atos Proportional Relief Valve
(1) Vickers Pilot Operated Relief Valve
Overall Dimensions....................
.................80" L-R x 66" F-B x 94" High
Weight........................
..............................
..8,000 lbs. (est.)
FOB........................................................Casa Grande, AZ
Specifications
Condition | Used |
Stock Number | 3381 |
