OILGEAR PVWJ Variable Pump

OILGEAR PVWJ Variable Pump

Casa Grande, AZ

orCall 1-520-836-9727

Description

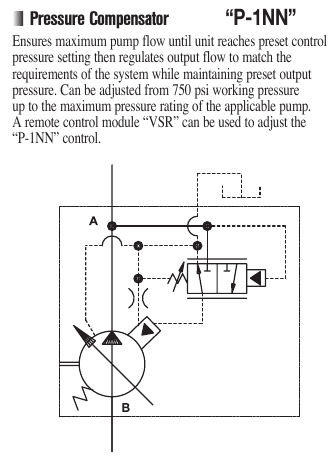

(1) Used OILGEAR PVWJ Variable Pump ; Open Loop; Pressure Compensating Specifications based on 150-300 ssu viscosity fluid: Model..................................................................PVWJ-046-A1UV-MLDFY-P-1NN/H023NN/CP Frame Size..........................................................B Shaft....................................................................0.875" Keyed Fluid Viscosity Range.........................................65-2000 ssu Theoretical Max. Displacement........................2.83 cu. in./revolution Rated Continuous Pressure.............................2,500 psi Peak Pressure....................................................3,000 psi Flow Rate @ 1800 RPM & 2500 psi.................20.6 gallons/minute Min. Inlet Pressure @ 1800 RPM......................9.0 psia Min. Speed..........................................................600 RPM Max. Speed.........................................................2,400 RPM Power Input @ 1800 RPM & 2500 psi..............35 HP Face Mounting....................................................SAE "B", 2 bolts Shaft and O-Ring Seals......................................Viton Rotation...............................................................Left (Counter-Clockwise) Overall Dimensions.............................................8.5" L x 5.8" W x 6.11" H Weight..................................................................

Specifications

ConditionUsed
Stock Number3443
