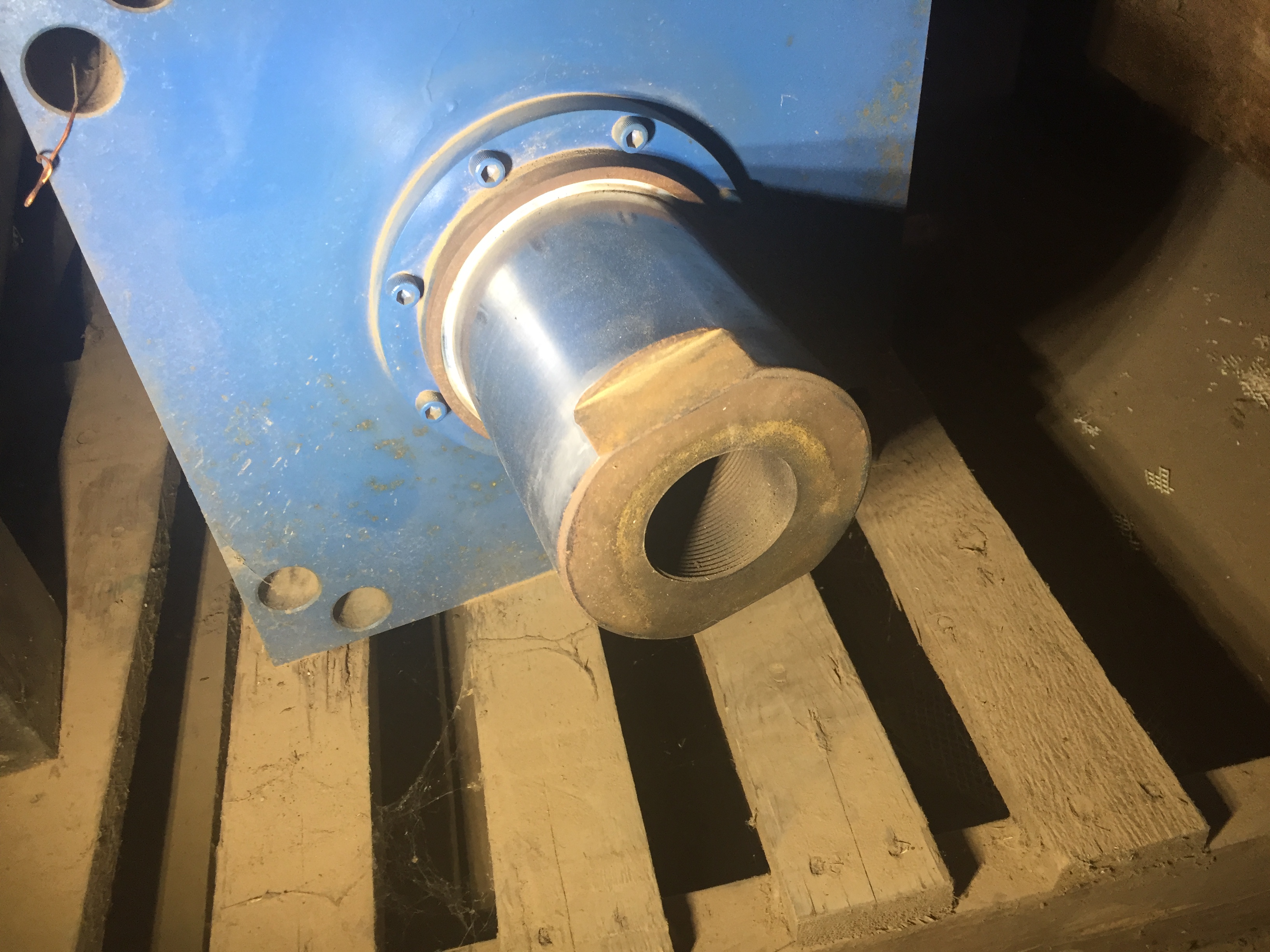

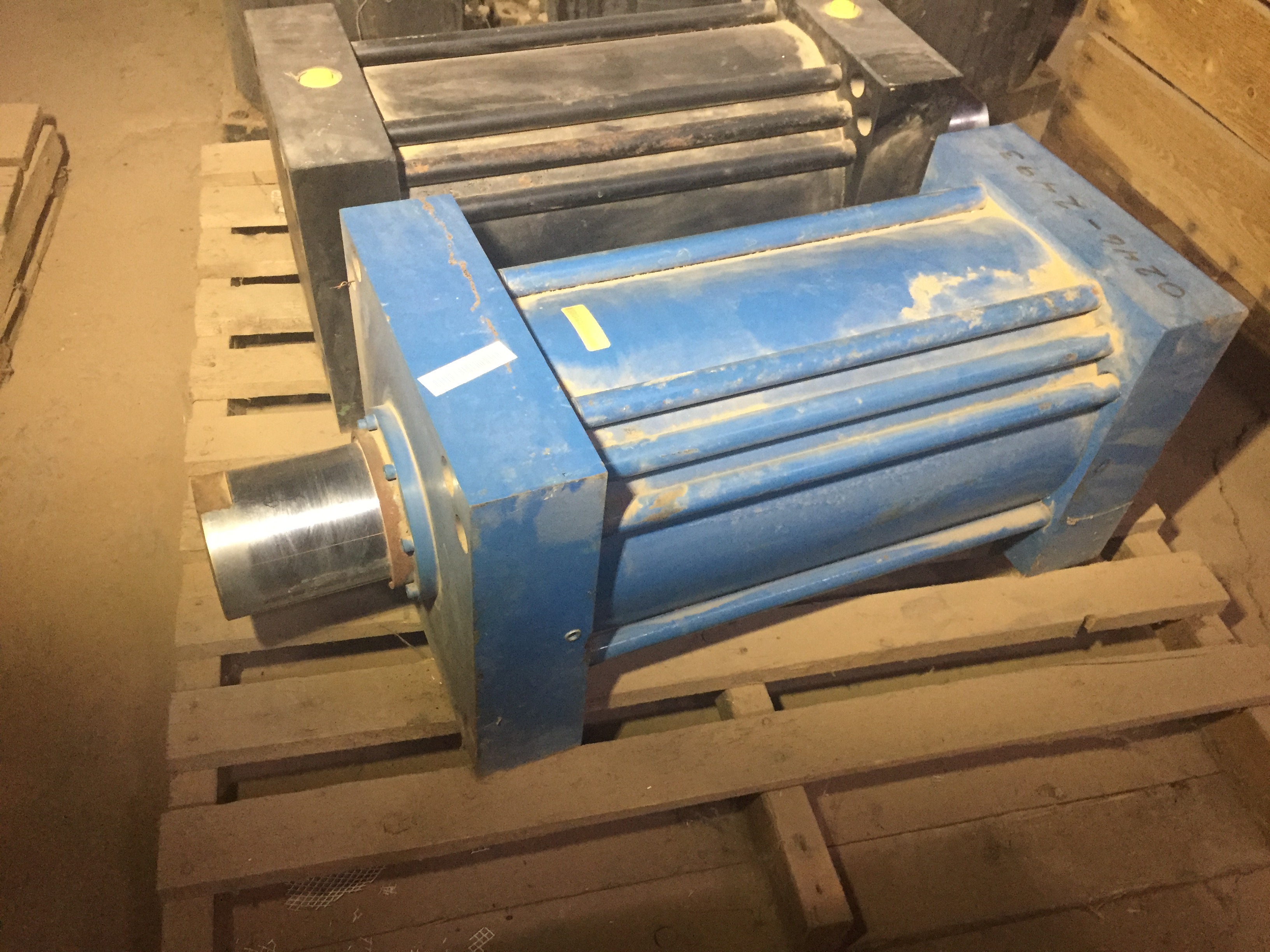

Miller Model H63BXN Hydraulic Cylinder

Miller Model H63BXN Hydraulic Cylinder

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

Miller Model H63BXN-1000-14.50-450-N11-9 Hydraulic Cylinder; S/N 71048882 Specifications: Stroke.............................14 1/2" Bore Diameter......................10" Rod Diameter.......................4 1/2" Base Flange Size...................12 5/8" x 12 5/8" 13 1/2" x 13 1/2" (rod end) Piston Seal........................ Cylinder Wall Thickness............ Rod Extension...................... Pressure...........................3,000 psi Upper Port I.D.....................1 1/4" Lower Port I.D.....................1 1/4" Piston Rod End..................... Piston Rod Threads................. Approx. Overall Dimensions.........14" L x 14" W x 33" H Weight............................. FOB................................Casa Grande, AZ

Specifications

ManufacturerMiller
Year1971
ConditionUsed
Stock Number3651
