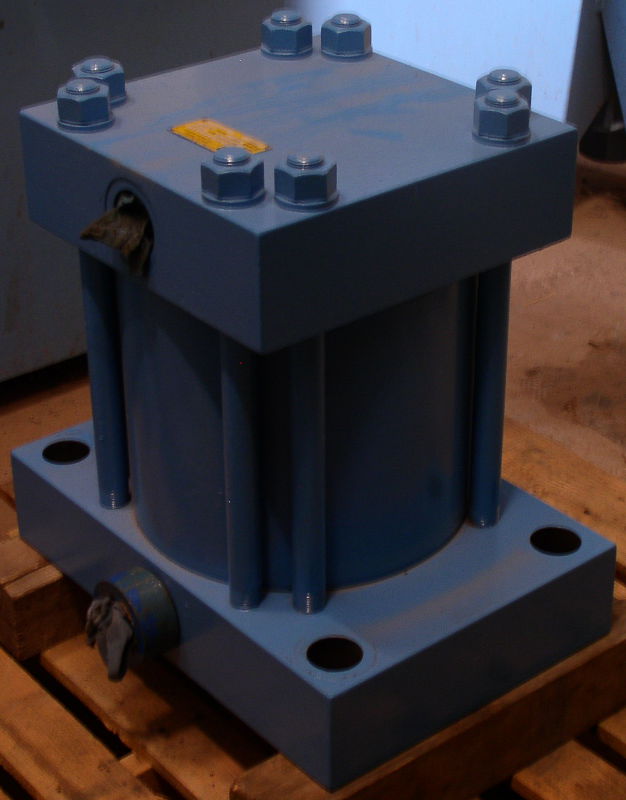

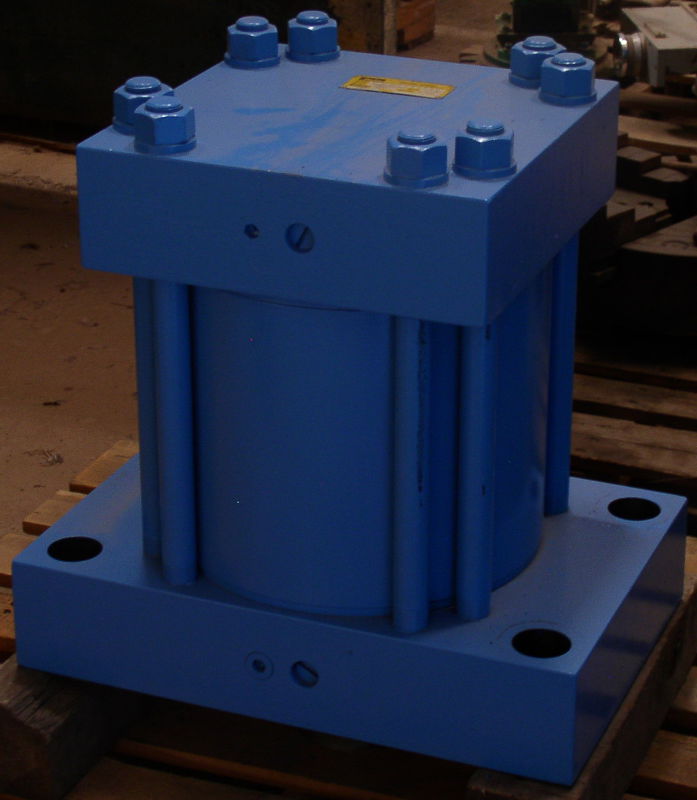

200 Ton Parker Series 3H Hydraulic Cylinder

200 Ton Parker Series 3H Hydraulic Cylinder

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

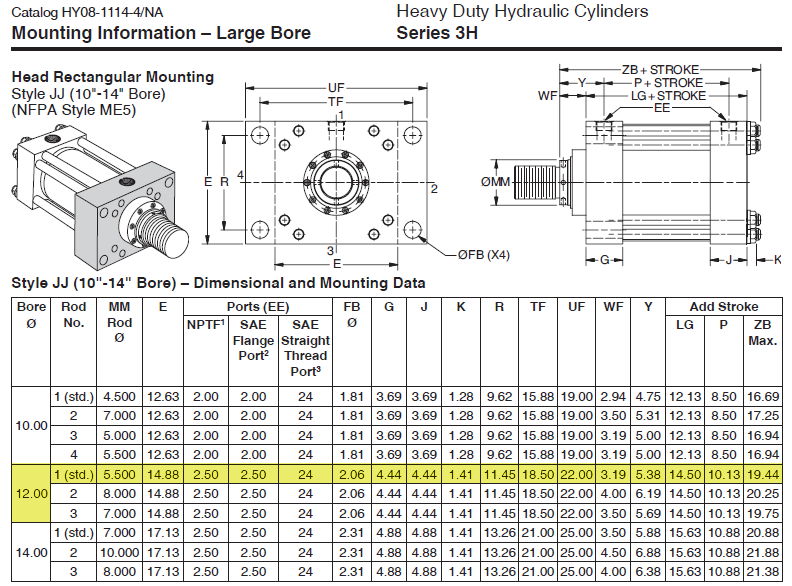

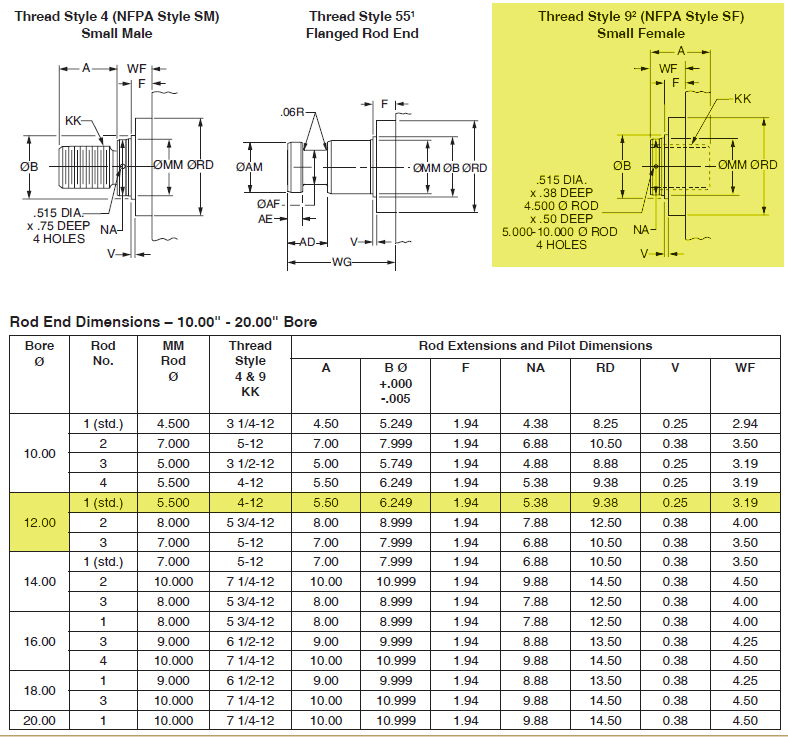

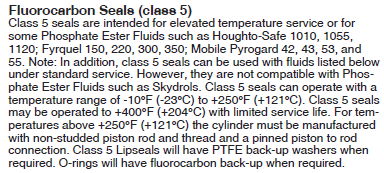

(1) Used 200 Ton Parker Series 3H Hydraulic Cylinder; S/N NN015693A1 Specifications: Model......................................................CJJ3HLTV19AO Bore........................................................12" Piston Rod Diameter............................... Stroke......................................................6.5" Envelope Pressure..................................3,000 psi Flange Size..............................................22" L x 15" W x 4 1/2" H (nominal) Piston Seal...............................................Lip Seal Ports........................................................SAE Straight Thread O-Ring Upper Port I.D..........................................1 5/8" Lower Port I.D..........................................2 3/8" Piston Rod End........................................Short Female Piston Rod Threads.................................UNF Standard Equipped With: Fluorocarbon seals Approx. Overall Dimensions.....................20 1/2" W x 22" L x 31" H Weight.....................................................1,180 lbs. FOB.........................................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number3376
