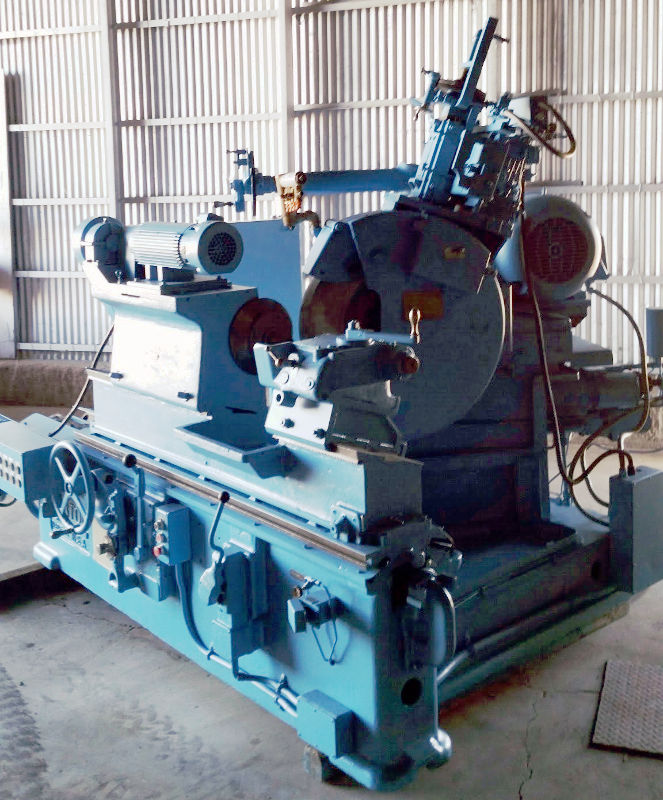

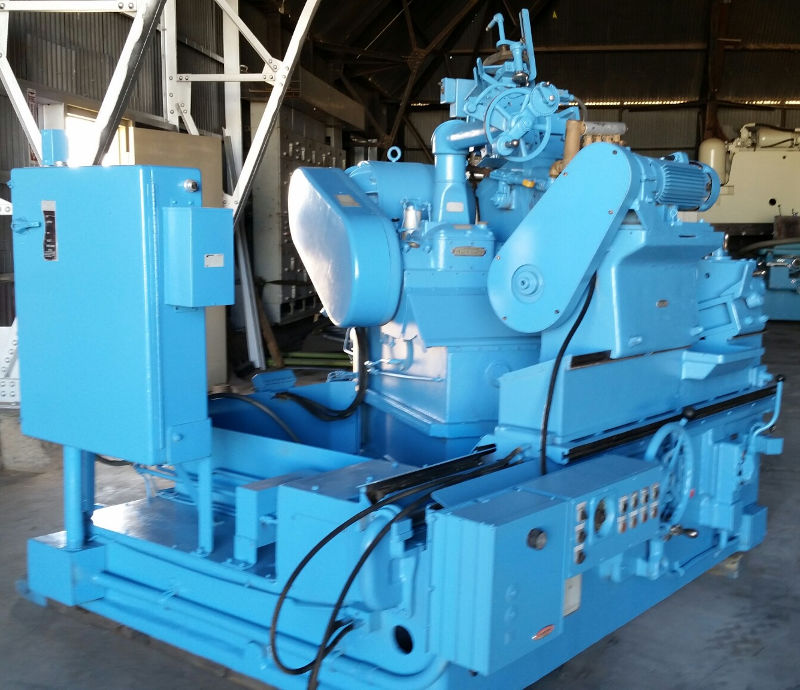

30" Norton “High Swing” Angle Head Cylindrical Grinder

30" Norton “High Swing” Angle Head Cylindrical Grinder

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 30" NORTON Model 10 / 20 x 36 "High Swing" Angle Head Cylindrical Grinder; S/N 24971 Specifications: Swing Over Bed.............................22" Swing Over Gap.............................31" Width of Gap...............................15" Distance Between Centers...................24" (maximum) Workhead Travel Left to Right..............28" (nominal) Table Taper Angle..........................0 - 5 Degrees Workhead Speed Range.......................10-200 RPM Workhead Swivel Range......................0° - 45° Grinding Wheel Head Travel.................16" (in/out) Grinding Wheel Diameter....................30" (maximum) Grinding Wheel Width.......................4" (maximum) Grinding Wheel Speed.......................____ RPM Wheel Head Drive...........................____ HP Electrical Characteristics.................460 VAC / 3 Phase / 60 Cycle Equipped With: Complete Electrical Controls Complete Hydraulic System Complete Coolant System 2 Axis Precision Wheel Dresser 2 Axis Digital Read-Out ___ HP Vari-Speed Headstock Drive ___ HP Vari-Speed Workhead Drive Overall Dimensions......................... Weight.....................................18,000 lbs. (est.) F.O.B......................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number3549
