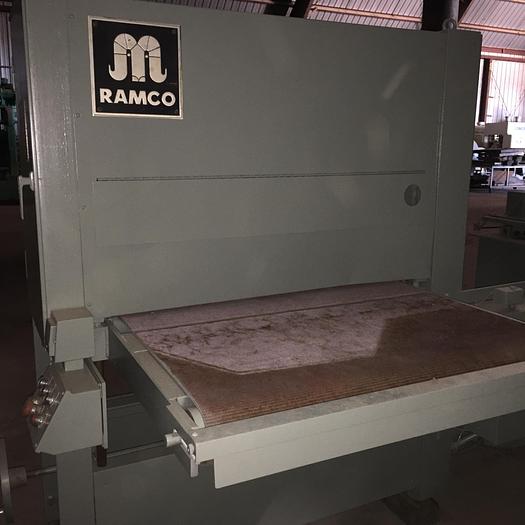

42” Ramco Belt Grinder; 12” Part Thickness; Single Head

Casa Grande, AZ

orCall 1-520-836-9727

Description

42" Ramco Belt Grinder; 12" Part Thickness; Single Head; Rec. #3772 Specifications; Maximum Workpiece Width.............42" Minimum Workpiece Length.............4" Thickness Opening, Maximum .........12" Thickness Opening, Minimum ........ -0- Conveyor Belt Width.......................... 42" Conveyor Belt Entry Length............... 30" Conveyor Belt Exit Length................. 12" Conveyor Belt Speed Range.............5 to 30 FPM Conveyor Belt Drive Motor.................1 HP Hold-Down Rollers (4)....................... 1 1/2" Diameter Contact Wheel Diameter..................... 7" Abrasive Belt Speed..........................4000 FPM Abrasive Belt Drive Motor.................. 30 HP @ 1750 RPM Conveyor Bed Adjustment............... Manual Handwheel Distance Floor to Conveyor .............. 24" to 36" Electrical Characteristics.................... 240 / 480 VAC / 3 Ph / 60 Cy. Equipped With; Complete Electrical Controls Air Tracking Control System 6" Diameter Exit Conveyor Brush with Drive Motor (4) (4) Lead-In and Exit Hold-Down Rollers Dual Exhaust Ports Above Conveyor Single Exhaust Port Below Conveyor Complete Wet Conversion System (optional) Overall Dimensions.......... 6 ft. F-B x 7 ft. L-R x 6 ft. High Weight................................ 4,000 lbs. (est) FOB............ Casa Grande, AZ.

Specifications

ConditionUsed
Stock Number3772
