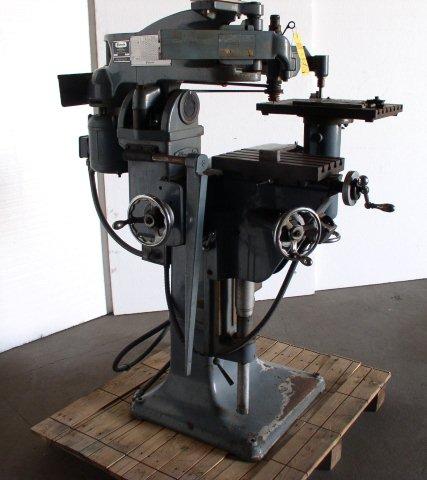

ALEXANDER Model 3A Pantograph / Engraver

(1) Used ALEXANDER Model 3A; 2D; 1:1.5 to 1:10 ratios; 950 to 19000 RPM; 8" x 14" Table ; S/N 1433 Specifications: Ratios................................................................Minimum 1:10 Maximum 1:1.5 Maximum collet capacity....................................5/16" (8mm) Vertical spindle adjustment................................Fine 5/64" (2mm) Coarse 1/4" (6mm) Spindle speeds (14)..........................................950 to 19,000 RPM Size of worktable...............................................7-7/8" x 13-3/4" Maximum distance spindle to table....................13-3/4" Worktable Travel (longitudinal)..........................5-7/8" (150mm) Worktable Travel (cross)...................................11-3/4" (300mm) Clamping area...................................................12-5/8" x 17-3/4" (320mm x 450mm) Maximum distance arm to copy surface..............9-7/16" (240mm) Swivel range.......................................................360 degrees Motor..................................................................5 HP Electrical Characteristics....................................240 VAC / 3 Phase / 60 Cycles Equipped With: Complete Electrical Controls Overall Dimensions...........................................48" L-R x 43" F-B x 63" High Weight..............................................................1,000 lbs. (est.) F.O.B................................................................Casa Grande, Arizona
