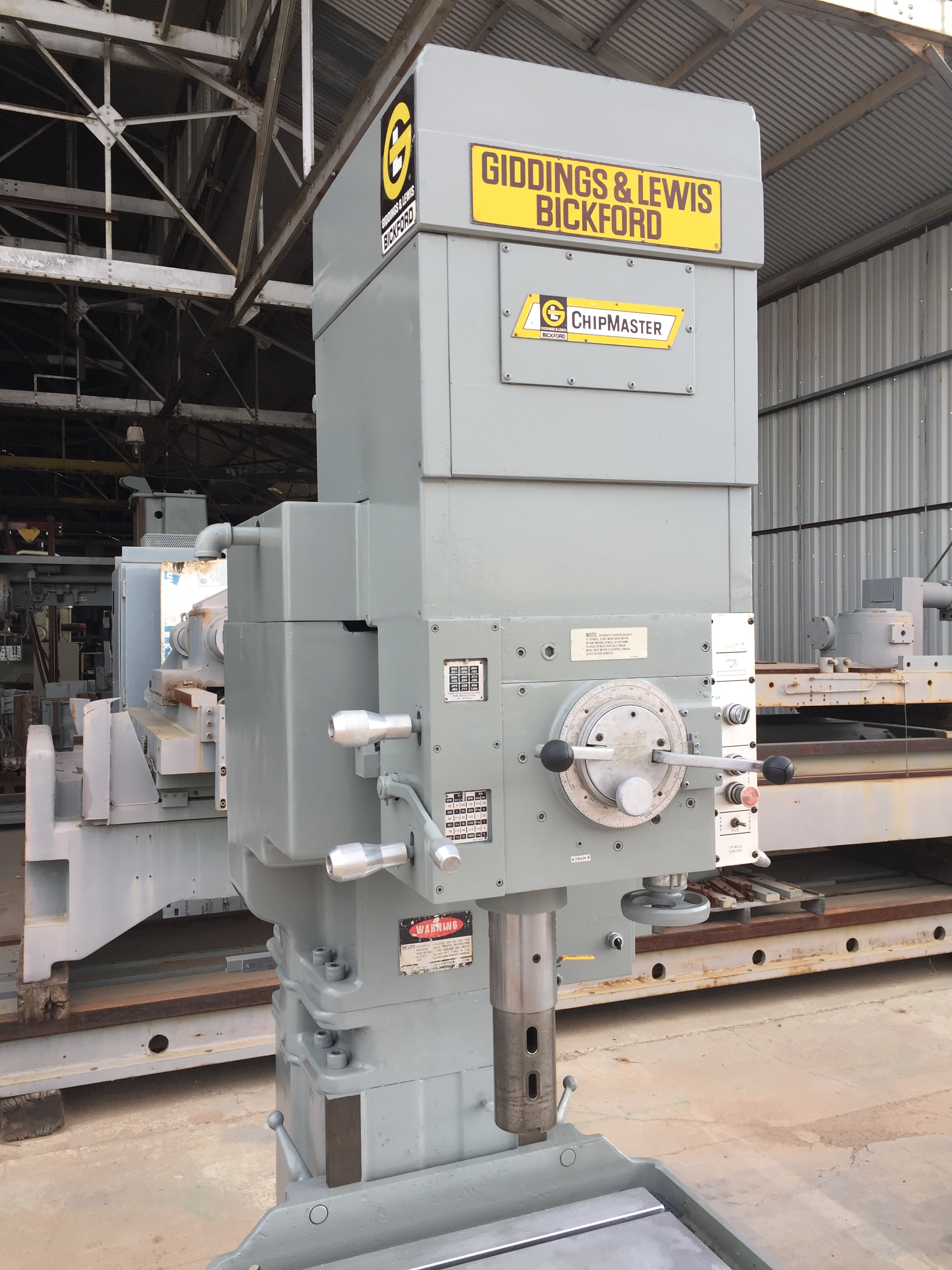

32” G & L / Bickford Hvy. Duty Single Spindle Drill; #6 MT

Casa Grande, AZ

orCall 1-520-836-9727

Description

32" G32” G & L / Bickford Heavy Duty Single Spindle Drill S/N: 97400046-77
Record Number: 3967

Specifications:
Spindle Taper.......................................................... …………..#6 Morris Taper
Quill Travel................................................................................16”
Number of Spindle Speeds..................................................12 speeds, 40 to 1600 RPM

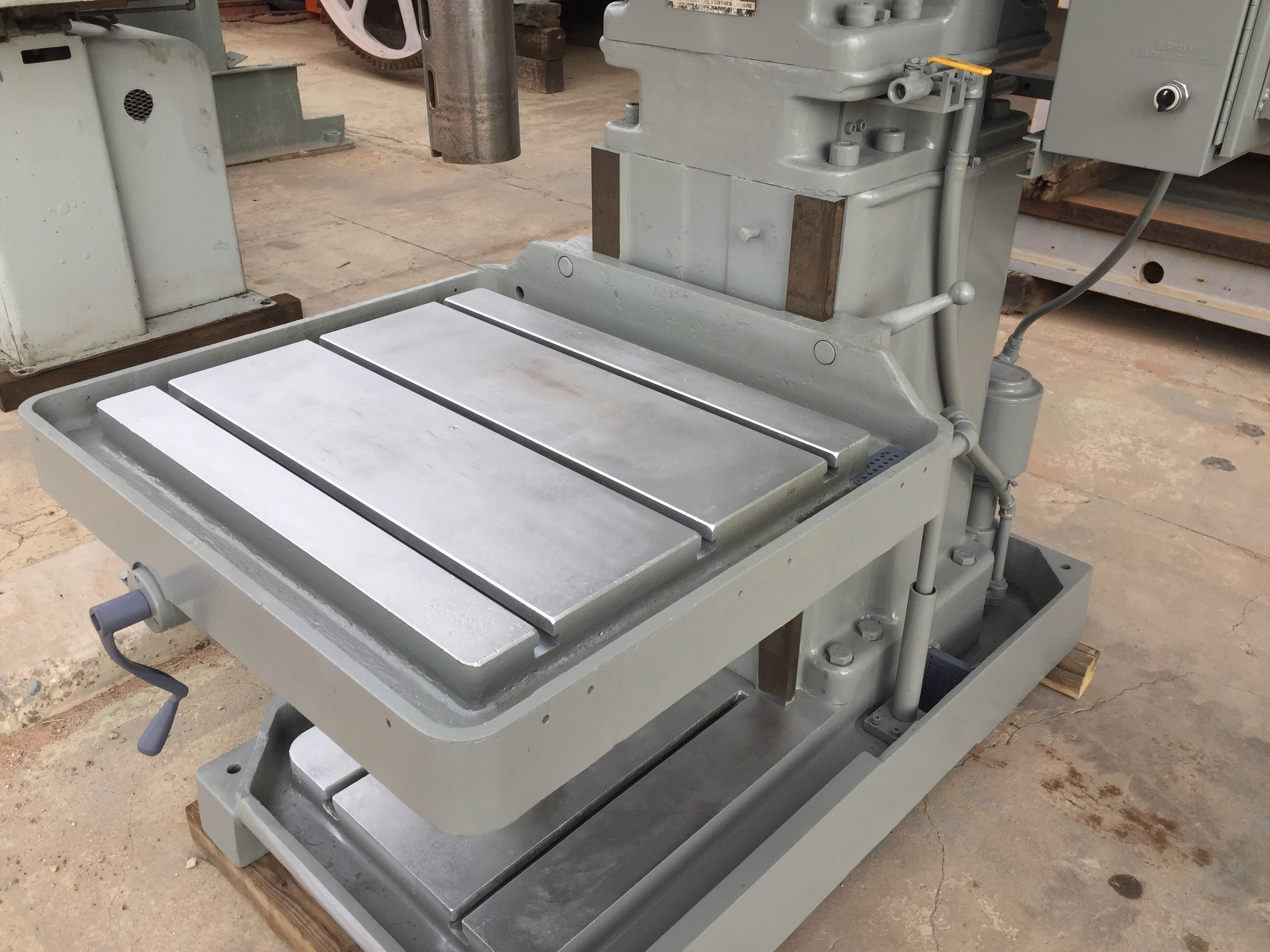

Table Working Area..............................................................32" F-B x 36" L-R
Distance Floor to Table Top...............................................variable
Centerline of Spindle to Column......................................16"
Column Size..............................................................................18" x 22" box
Motor...........................................................................................10 HP @ 1,160 RPM
Electrical Characteristics....................................................230/460 VAC / 3 Phase / 60 Cycle / Amps 26.6/13.3

Equipped With:
Hydraulic spindle counter weight and power feed quill

Overall Dimensions.............................40" L-R x 48" F-B x 8FT 6" High
Weight................................................3,000 lbs. (est.)

Specifications

ConditionUsed
Stock Number3967
