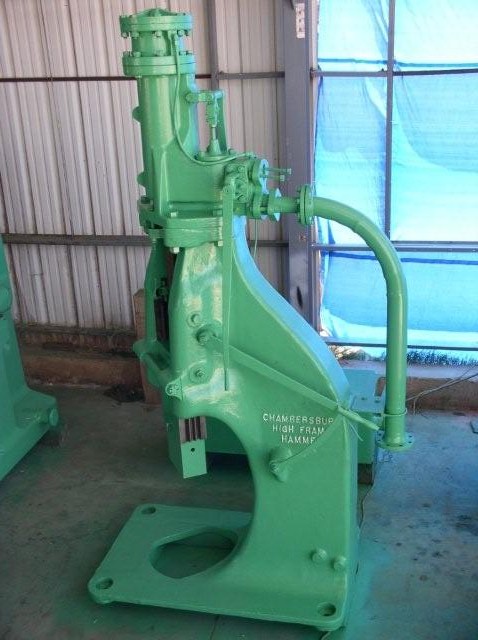

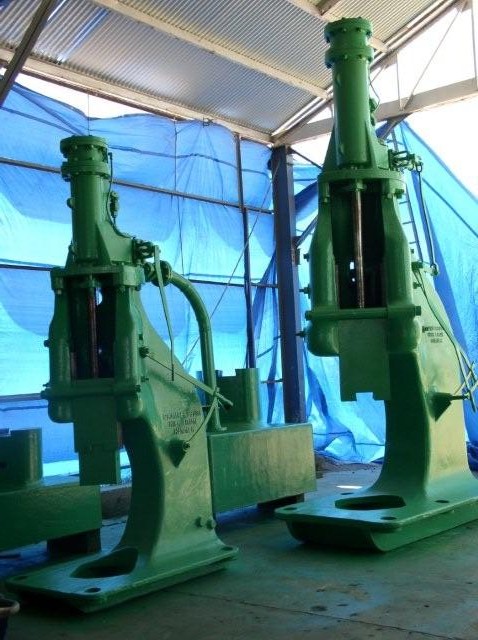

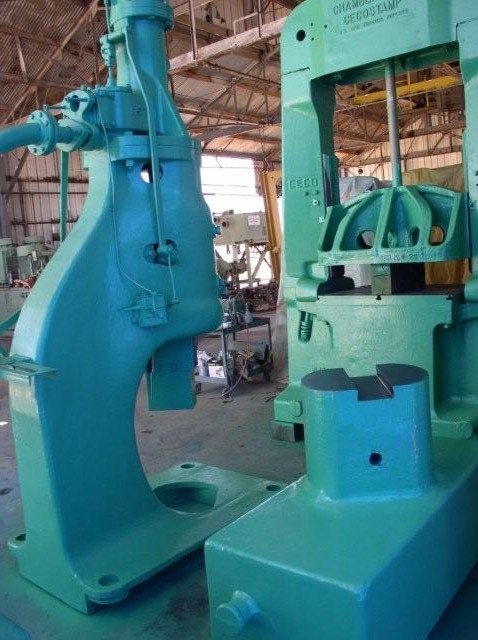

750 lb. Chambersburg Model L High Frame Hammer

750 lb. Chambersburg Model L High Frame Hammer

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 750 lb. Chambersburg Model L High Frame Hammer; S/N 2267L7; Excellent condition! Specifications: Weight of Ram..........................750 lbs. Size of Ram............................6" L-R x 11 1/2" F-B Size of Bed (Anvil)....................14 1/4" x 6" Throat.................................18" (est.) Daylight Opening.......................38" (est.) (max.) Stroke.................................23" (max.) Distance Floor to Bed (Anvil)..........14" (est.) Hammer Speed (variable)................0-100 Blows / Min Maximun Energy per Stroke..............6,280 ft. lbs. Required Air Supply....................90 - 110 PSI Lifting Speed..........................Adjustable Pit Size...............................28" x 60" x 32" deep (approximate) Equipped With: Operator's Controls Mechanical Latch Lock-Out System Multiple V Gibbing (replaceable) Tooling (optional) Shipping Dimensions....................78" L x 40 1/2" W x 138" H Weight.................................28,600 lbs. (est.) F.O.B..................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number2588
