24" Cincinnati-Bickford Heavy-Duty Drill Press; Floor Model; #4 M.T. Single phase

24" Cincinnati-Bickford Heavy-Duty Drill Press; Floor Model; #4 M.T. Single phase

Location:Northport, MI

orCall 1-520-836-9727

Description

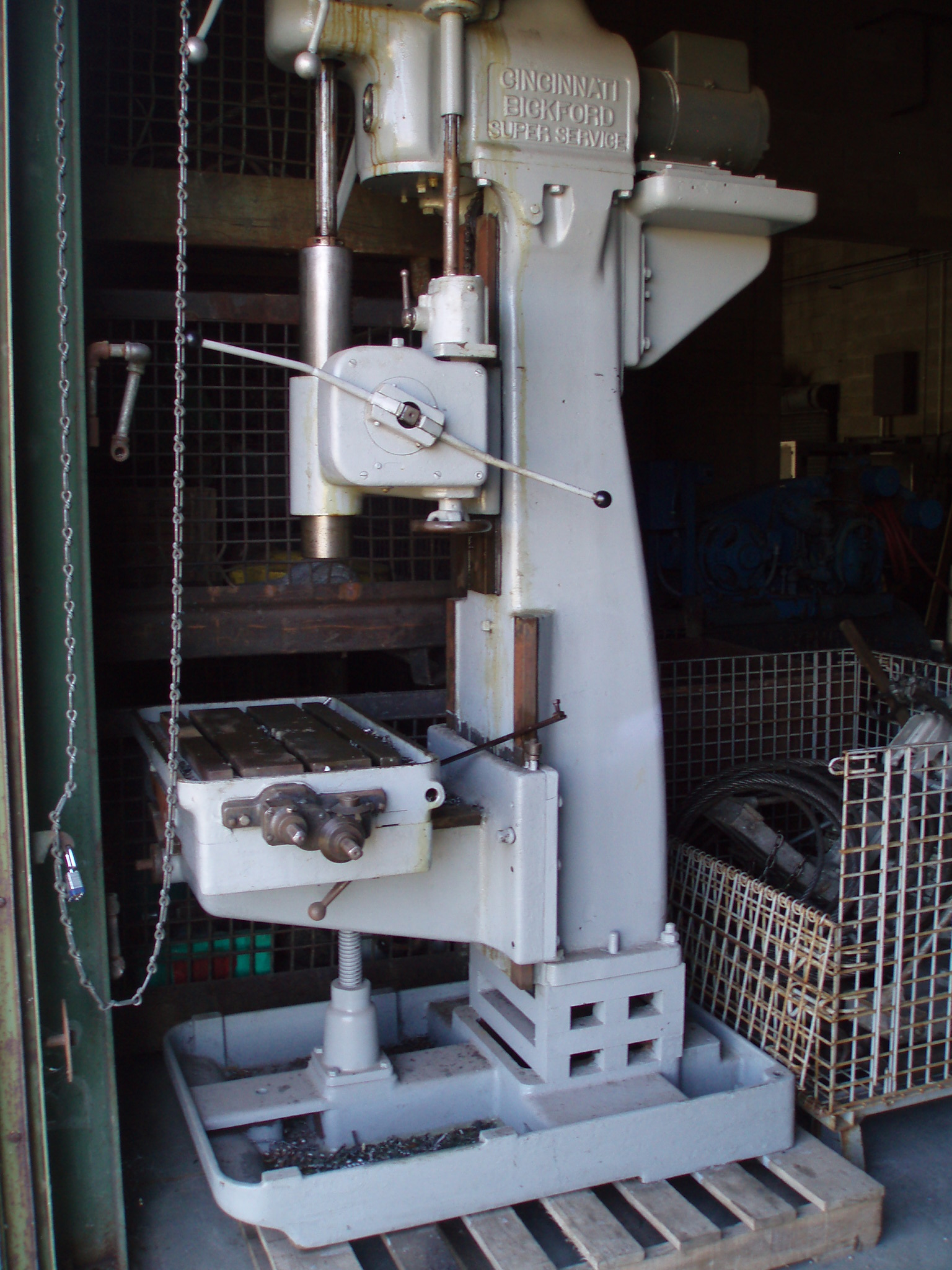

(1) Used 24" CINCINNATI BICKFORD Drill Press, Floor Model Specifications: Spindle Taper..................................#4 Morse Taper Quill Travel...................................5" Spindle Speeds (12)............................90-1,500 RPM Distance Spindle Nose to Table Top.............0" Min. to 28" Max. Table Working Area.............................18" F-B x 28" L-R Distance Floor to Table Top....................32" to 40" Centerline of Spindle to Column................11" Column Post Collar Height...................... Column Size....................................8" x 10" box Motor..........................................5 HP @ 1,800 RPM Electrical Characteristics.....................208/230 VAC / 1 Phase / 60 Cycle Equipped With: Power Downfeeds 2-Axis Table Complete Electric Controls Overall Dimensions.............................40" L-R x 48" F-B x 8'6" High Weight.........................................3,000 lbs. (est.) F.O.B..........................................Northport, Michigan

Specifications

ConditionUsed
Stock Number2154
