20" Powermatic Single Spindle Drill; Variable Speed; Floor Type 24"x 40" Table; #3 M.T.

20" Powermatic Single Spindle Drill; Variable Speed; Floor Type 24"x 40" Table; #3 M.T.

Casa Grande, AZ

orCall 1-520-836-9727

Description

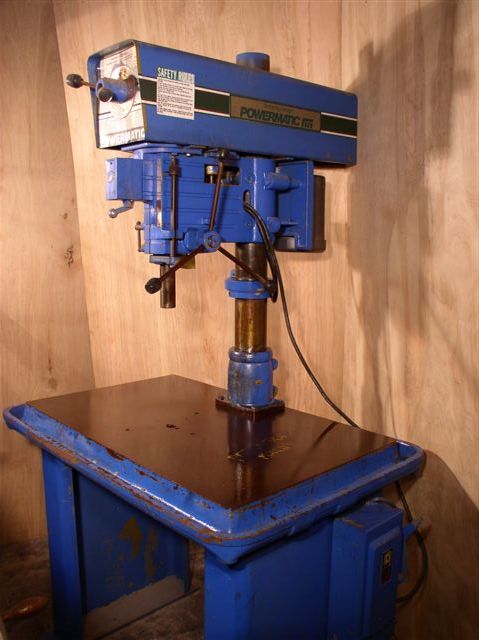

(1) Used 20" POWERMATIC Model 1200 Drill Press; Floor Model; S/N 8520V171 Specifications: Spindle Taper..........................#3 Morse Taper Quill Travel...........................5" Variable Spindle Speeds................100-2,000 RPM Distance Chuck Nose to Table Top.......8" Min. to 13 1/2" Max. Table Working Area.....................24" F-B x 40" L-R Distance Floor to Table Top............34" Centerline of Spindle to Post..........10 1/8" Column Post Collar Height..............50" Column Post Size.......................4" Motor..................................1.5 HP @ 1725 RPM Electrical Characteristics.............230/460 VAC / 3 Phase / 60 Cycles Equipped With: Power Feeds Complete Electric Controls Overall Dimensions.....................48" L-R x 30" F-B x 78" High Weight.................................940 lbs. (without pallet) F.O.B..................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number2026
