14 Ga x 54" WELTY-WAY Model F48 Cut-To-Length & Slitting Line; 10,000 lb. Coil Capacity
No longer available
14 Ga x 54" WELTY-WAY Model F48 Cut-To-Length & Slitting Line; 10,000 lb. Coil Capacity
Casa Grande, AZ
Description

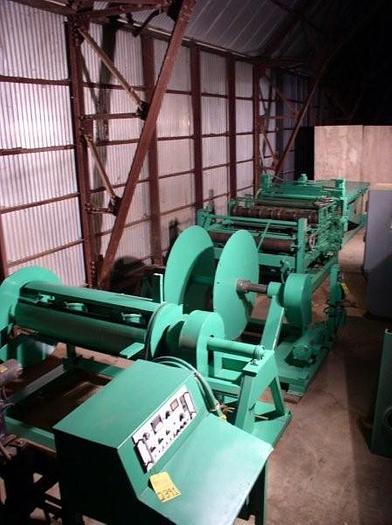

(1) Used 54" x 14ga WELTY-WAY Model F48 14 GA Cut-To-Length & Slitting Line; S/N 67013
Specifications:
Capacity:
Maximum..............................54" x 14 ga
Minimum..............................6" x 26 ga (nominal)
Maximum Coil Weight..................10,000 lbs.
Maximum Coil Outside Diameter........60"
Coil I.D. Range......................16"-20"
Expansion Type............................Manual
Slitting Blades...........................9/16" wide x 9" diameter
Straightener Rolls........................3 over 4
Straightener Rolls........................3" diameter
Travel of Shear...........................18"
Maximum Feed Length.......................0-Infinity
Main Drive Motor..........................10 HP (est)
Electrical Characteristics................480 VAC / 3 Phase / 60 Cycle
Equipped With:
Complete Digital Controls with Operator Station
4 ft x 12 ft Roll-In Hydraulic Drop Table with Forklift Access
7 Slitting Blade Sets
Motorized Payoff Reel with Drag Brake
7 Roll Straightener Section
Motorized Vari-Speed Coil Re-Winder with Coil Dividers
Pneumatic High Speed Cut-Off Shear
Entry Guides
Approximate Overall Dimensions............30ft L-R x 6ft F-B x 5ft High (Floor Space Required)
Weight....................................10,000 lbs. (est.)
FOB.......................................Casa Grande, AZ
Specifications
Condition | Used |
Stock Number | 2391 |
