30" x 10 Ga. x 6,000 lb. Press Room Equipment / Red Bud Industries Cut-To-Length Line with Hydraulic Drive System
No longer available
30" x 10 Ga. x 6,000 lb. Press Room Equipment / Red Bud Industries Cut-To-Length Line with Hydraulic Drive System
Casa Grande, AZ
Description

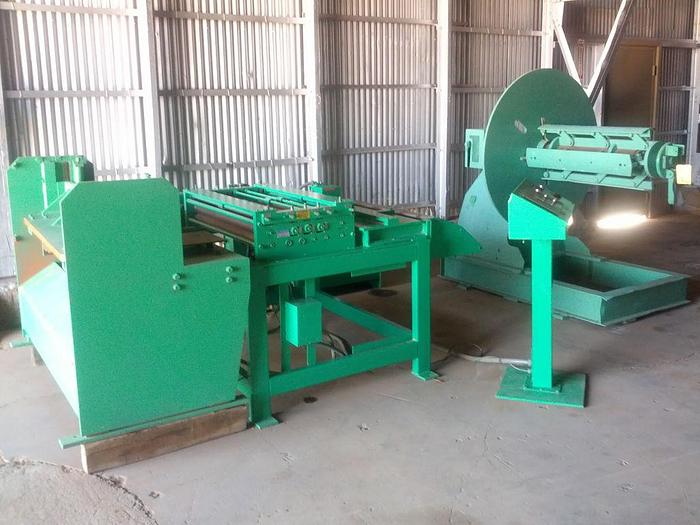

(1) Used 30" x 10 Ga. x 6,000 lb. Press Room Equipment / Red Bud Industries Cut-To-Length Line
Specifications:
Capacity:
Maximum Stock Width................30" @ 14 ga. (nominal)
Minimum Stock Width................4" (nominal)
Maximum Stock Thickness............0.120" @ 8" wide
Note: Feeding and Cut-Off only: 30" Wide x 10 ga. (.120") nominal
Feeding, Straightening and Cut-Off: 30" x 14 ga. / 20" x 12 ga. / 8" x 10 ga.
The P.R.E. Combination Straightener and Feeder has a capacity of 36" wide x 16 ga. but since the RBI Shear capacity is only 30" wide, the maximum width of the complete line would be 30" at which the P.R.E. unit has 14 ga. capacity.
Maximum Coil Weight...............6,000 lbs.
Maximum Coil Outside Diameter.....72" (nominal)
Coil Inside Diameter..............16" - 21"
Number of Straightener Rolls...........3 over 4
Size of Straightener Rolls.............2.5" dia. x 36" long
Number of Pinch/Feed Rolls.............4
Size of Pinch/Feed Rolls...............3.5" dia. x 36" long
Feed Length............................0" - 999" (max)
Feed Rate (Variable)...................10-45 F.P.M. (max)
Pass Line Height.......................49" (nominal)
Hydraulic Drive System.................10 HP (nominal)
Electrical Characteristics.............240/480 VAC / 3 Phase / 60 Cycle
Equipped With:
AMS Model MP 300 Series PLC Controller with Digital Read-Out and Operator's Station
6,000 lb. x 36" Bradbury Model SR-6.5 Motorized Coil Reel (Rec. #
2160
)
36" x 16 ga. P.R.E. Model PMS 3625 Straightener/Feeder (Rec. #
2399
)
30" x 10 ga. Red Bud Industries Hydraulic Shear with Hydraulic Unit
30" x 3' Adjustable-Angle Roller Type Drop-Off Conveyor
18' long Structural Steel Floor Base
Approx. Overall Dimensions.............18' L-R x 4' F-B x 5' High
Weight.................................8,000 lbs. (est.)
FOB....................................Casa Grande, AZ
Specifications
Condition | Used |
Stock Number | 2826 |
