225 Ton x 12 ft Cincinnati #9 Press Brake; Auto-Cycle

Casa Grande, AZ

orCall 1-520-836-9727

Description

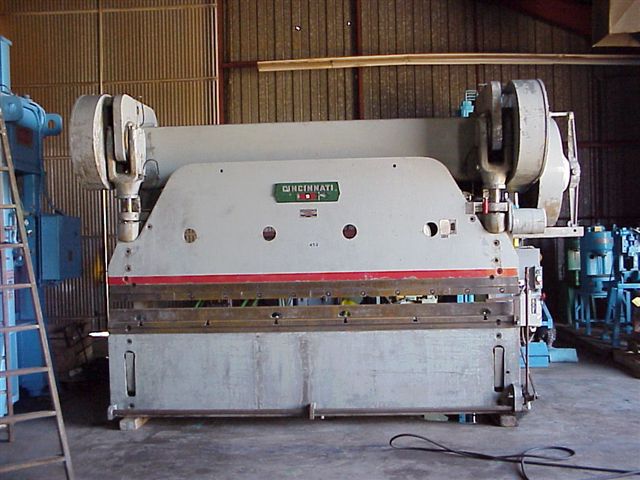

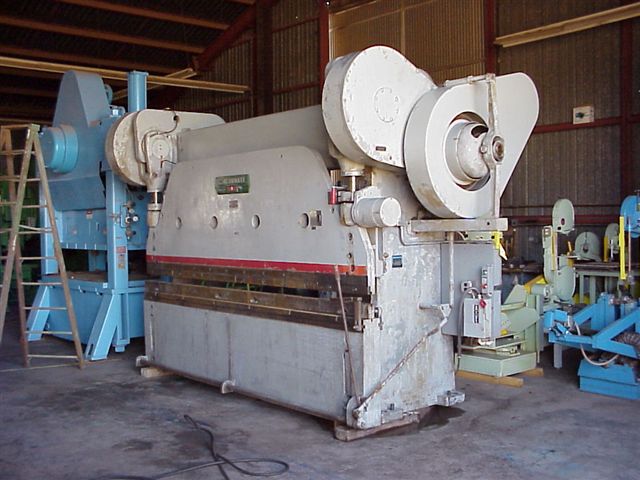

(1) Used 12 ft x 225 Ton CINCINNATI Series 9 Mechanical Press Brake; S/N 36096
Specifications:
Capacity...............................225 Ton Bottom Stroke
150 Ton Mid Stroke
Bending Capacity.......................1/4" x 12 ft
Overall Length Bed and Ram.............12 ft
Distance Between Housings..............10 ft 6"
Stroke.................................3"
Die Space..............................
Shut Height (SDAU).....................12"
Ram Adjustment ........................5"
Throat Depth...........................8"
Speed..................................30 / 7 SPM
Distance Floor to Bed..................
Motor..................................15 HP
Electrical Characteristics.............220/440 VAC / 3 Phase / 60 Cycle
Equipped With:
Programmable Controller
2 Axis CNC Back Gage
Cincinnati Auto Cycle System
Dual Pneumatic Ram Counter-Balance
Approx. Overall Dimensions.............14 ft L-R x 6 ft F-B x 9 ft High
Weight.................................34,200 lbs. (est.)
F.O.B..................................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number2149
