50,000 LBS MITCHELL 3-DIE PUSH POINTER

50,000 LBS MITCHELL 3-DIE PUSH POINTER

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

50,000 LBS MITCHELL 3-DIE PUSH POINTER


MANUFACTURER - MITCHELL

SERIAL NUMBER - PP-211

YEAR - 1975

RATED CAPACITY - 50,000 LBS @ 2000 PSI

MAXIMUM CAPACITY - 62,800 @ 2500 PSI

AUTOMATIC CYCLE - ONE (1), TWO (2) OR THREE (3) PUSH

POINTING SPEEDS

ADVANCE - 219 IPM @ 2000 PSI

RETURN - 284 IPM @ 1000 PSI

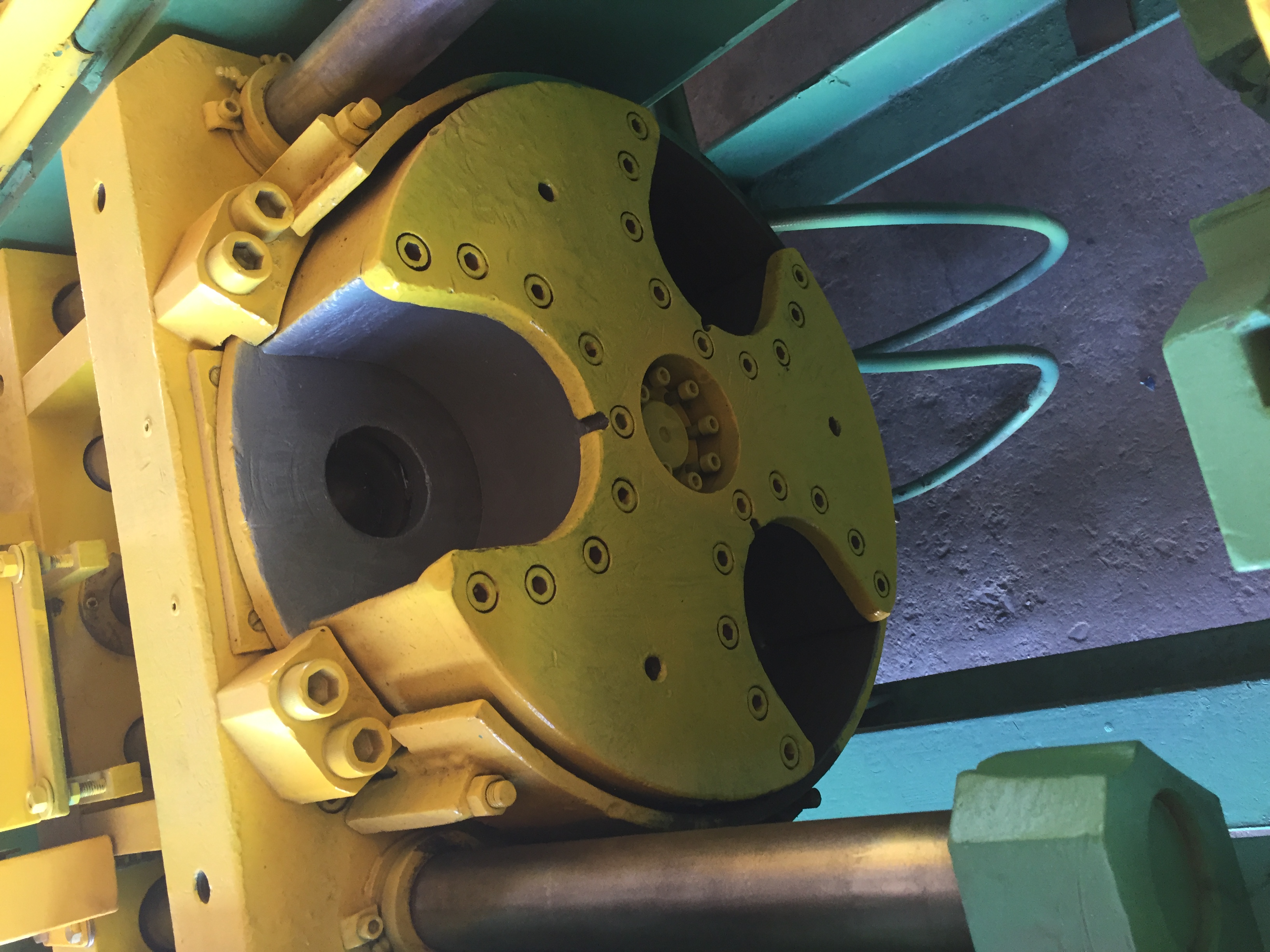

DIE HOLDER - THREE HOLE ROTARY WITH 6.010" ROUND X 4 1/32" DEEP CAVITIES

POINT LENGTH - AUTOMATIC BY HYDRAULIC CYLINDER - (4) POSITION SELECTOR SWITCH

MAX TRAVEL OF DIES - 14"

TUBE GRIPPER JAWS - SQUARE, HEXAGONAL, OR OCTAGONAL

LENGTH OF GRIPPER JAWS - 16"

MAX OPENING BETWEEN THE JAWS - 3" (tube diameter)

DIE INDEX MECHANISM - HYDRAULIC MOTOR/FERGUSON DRIVE

DIE INDEX SPEED - 55 IPM

CLAMPING MECHANISM - HYDRAULIC CYLINDER & DOUBLE TOGGLE

HYDRAULIC RESERVOIR - 100 GALLON CAPACITY

HYDRAULIC DOUBLE PUMP - 23.8 GPM @ 2000 PSI (MAIN) | 7.8 GPM @ 1000 PSI (AUX.)

PUMP MOTOR - 30 HP, 1200 RPM, 460 VOLT, 3 PH, 60 CYCLE


INCLUDES:

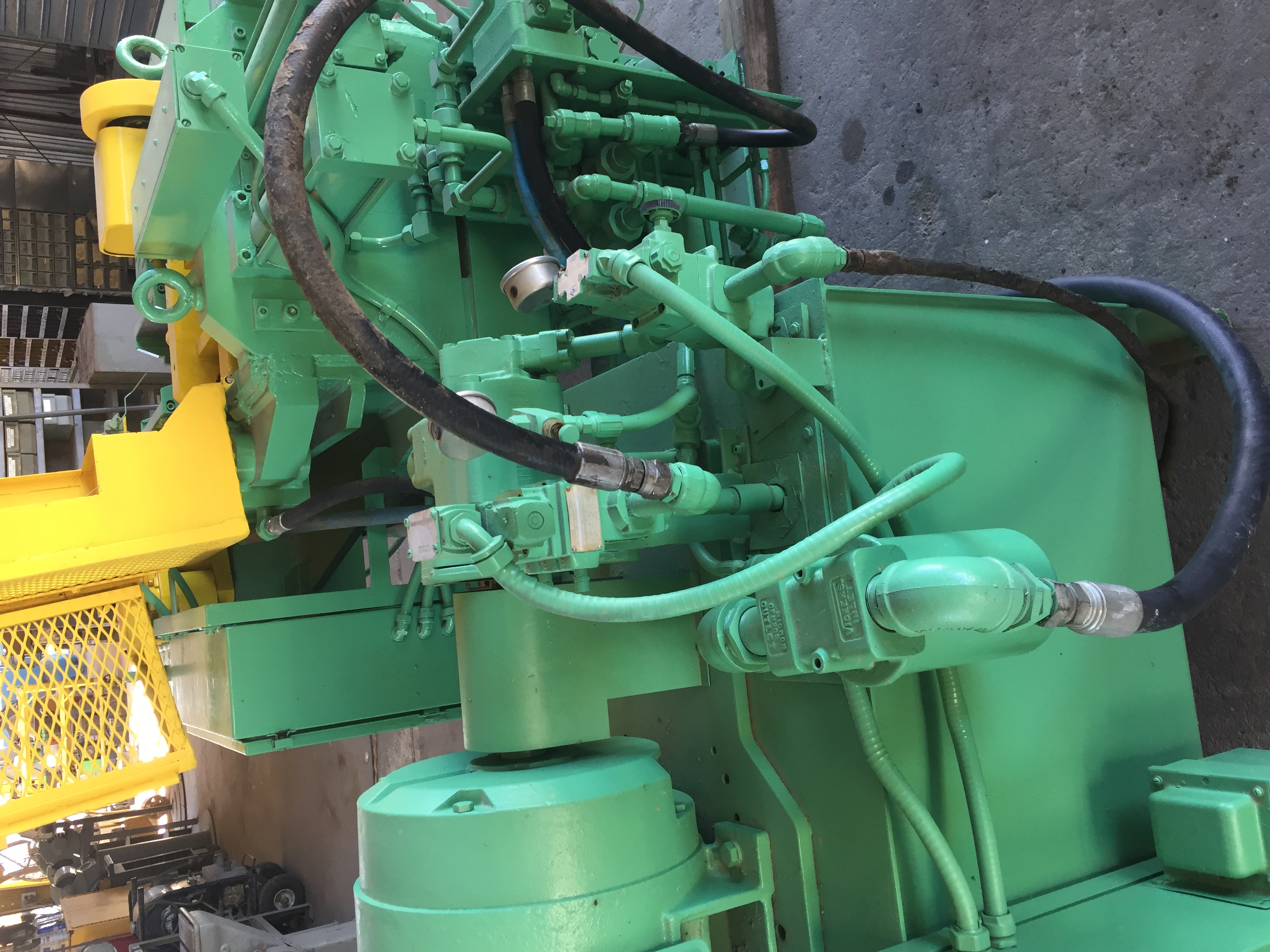

ELECTRICAL CONTROL AND HYDRAULIC UNIT


ALL SPECIFICATIONS ARE CATALOG SPECIFICATIONS AND MUST BE VERIFED BY PURCHASER




Specifications

ManufacturerMitchell
Model50,000 Lb
Year1975
ConditionUsed
Serial NumberPP-211
Stock Number4129
